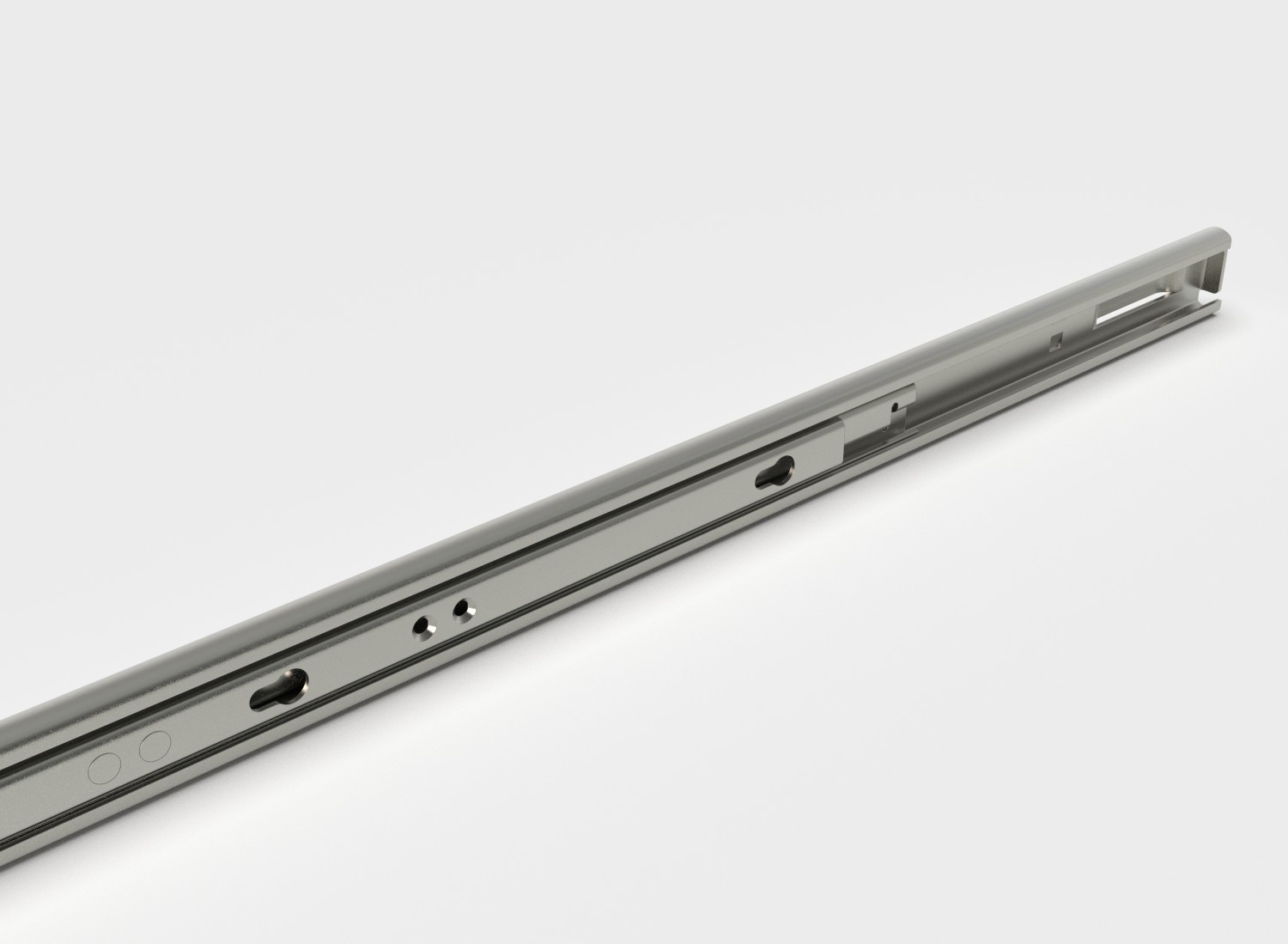

501 Series Light-Duty Steel Friction Slides

The 501 series steel friction slides are 1.00″ x .375″ wide and manufactured in carbon steel with standard zinc plating. The 501 Series has a load rating of 50-85lbs. per pair.

For Product Support, please contact your Local Representative 714-665-4400 or email salessupport@jonathanengr.com

Tech Specs
Custom Features
Custom Solutions
Downloads

501 Standard Features

Material: Carbon Steel
Load Rating: 50 to 85 lbs
Lengths: 10” to 30”
Travel: 12” to 32”
Inner members interchangeable
Lock open
Outer member bracketry
Finish: RoHs compliant commercial zinc
Hard mounted or rack mounted

Any length
Any travel
Custom hole patterns and sizes
Custom finishes

COTS Trays
Ruggedized Assemblies
Integrated Kits
Sheet Metal Assemblies
Cable Management
Bracketry
Hardware Kits
Trays
Precision Machined Components

501

501 Catalog Drawing

501QD

501QD Catalog Drawing

501QD

The inner member includes a quick disconnect for more efficient installation, servicing, and interchangeability.
