Carbon Steel Telescopic Slides

510 Series Light-Duty Steel Friction Slides

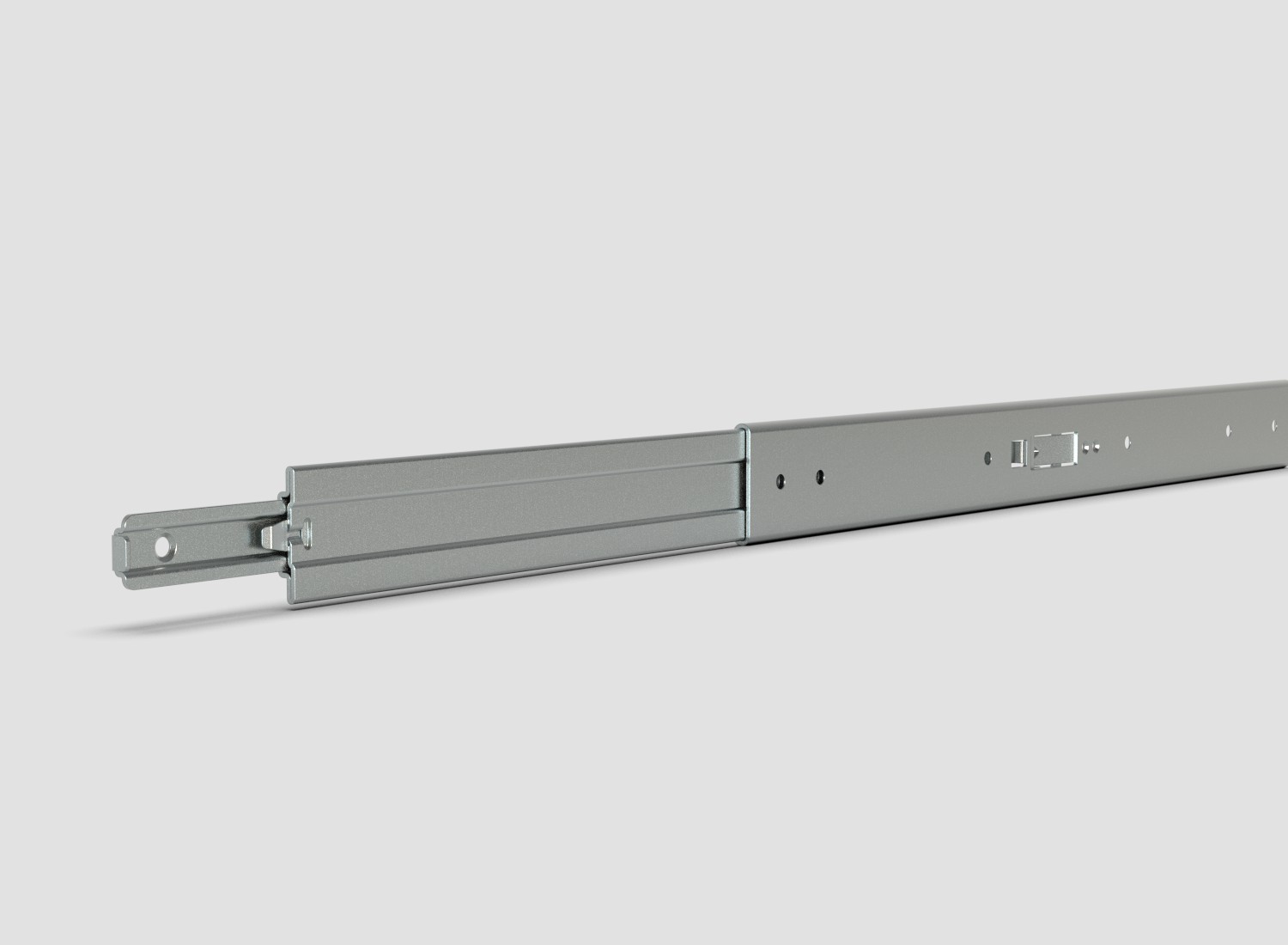

The 510QD slide is .38″ wide x 1.69″ tall and manufactured with carbon steel and finished with a ROHS compliant commercial Zinc plating. Optional finishes (including dry film lubricants) and customizations are available. The 510QD is a 3 section slide with a load rating of up to 105 lbs.

Clear

For Product Support, please contact your Local Representative at 714-665-4400 or email us at salessupport@jonathanengr.com



  • Tech Specs
  • Custom Features
  • Custom Solutions
  • Downloads
510 Standard Features
  • Material: Aluminum
  • Solid Bearing Friction Slide
  • Load Rating: 80 to 135 lbs
  • Lengths: 10″ to 30″
  • Travel: 9″ to 27″
  • Quick disconnect
  • Lock open
  • Interchangeability
  • Integrated adjustable rear shock block (515QDA only)
  • Black anodize finish on stationary and moving slide member
  • Baked lubricant finish on middle slide member
  • Bracketry Available: BK-40 & BK-38 (recessed style), BK-77
  • Any length
  • Any travel, full travel, under travel, over travel
  • Custom hole patterns and sizes
  • Lock open or stop open (no locks)
  • Tool-less bracketry
  • Custom finishes including dry film lubricants and black zinc
  • Standard Bracket Kit: BK-47 and BK-48 available
  • Custom Brackets and mounting configurations
  • COTS Trays
  • Ruggedized Assemblies
  • Integrated Kits
  • Sheet Metal Assemblies
  • Cable Management
  • Bracketry
  • Hardware Kits
  • Trays
  • Precision Machined Components
510QD/SS

510QD/SS Catalog Drawing

Arrow
510QDG/SS

510QDG/SS Catalog Drawing

Arrow
510QDS/SS

510QDS/SS Catalog Drawing

Arrow

510QD/SS Series

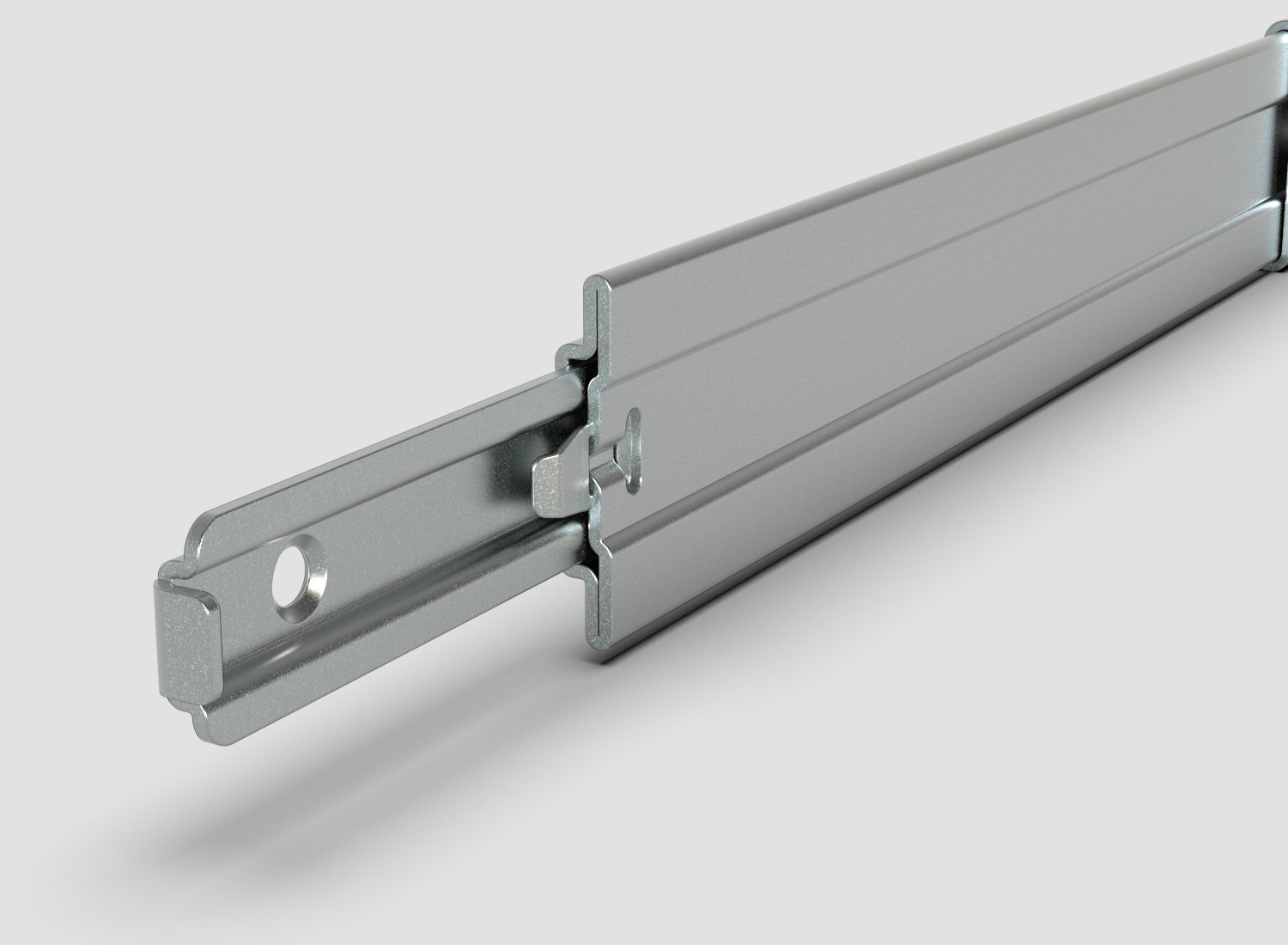

The inner member includes a lock-open and quick disconnect for more efficient installation, servicing, and interchangeability.


510QDG/SS

510QDG has a quick disconnect feature and accommodates #8 screws to mount to chassis/drawer unit.


510QDS/SS

510QDS features a quick disconnect with stop-open mechanism.
