Cable Management
Cable Management Systems
Jonathan Engineered Solutions offers an endless variety of solutions to better organize your leads and cables. Available in aluminum, stainless, and carbon steel like every JES product, our cable management systems vary in height and configuration to create invaluable efficiency behind your enclosures. Featured here are some of the standard cable management families offered by JES, but we have variants of these available that include more specific features designed to better accommodate your application. Be sure to ask your local sales rep for literature regarding all available options for managing leads and cables.
- Tech Specs
- Downloads
Cable Management Solutions
CMS-16 & Variants
CMS-16-1U
- Cable Management System (CMS) is a 2-arm cable carrier constructed from Aluminum Alloy & Stainless Steel components with anodized and passivated finishes
- For direct mounting to electronic rack 1U chassis spacing this cable carrier can mount to several locations within 2U and taller rack spacing
- Mounts to rack rail secondary mounting flange
- Closed length of 16-1/2 inches allows 29-inch outward movement to support various cable installations
- Thru holes on carriers arms allows mounting features to be attached to retain cables securely
- Moving carrier arm does not mount to chassis rear and allows service loop from cables to chassis
CMS-16-QD
- Constructed from Aluminum Alloy & Stainless Steel components with anodized and passivated finishes
- For direct mounting to electronic rack 1U chassis spacing this cable carrier can mount to several locations within 2U and taller rack spacing
- Mounts to rack rail secondary mounting flange
- Closed length of 16-1/2 inches allows 29-inch outward movement to support various cable installations
- Thru holes on carriers arms allows mounting features to be attached to retain cables securely
- Moving carrier arm mounts to chassis rear and allows service loop from cables to chassis
Moving carrier arm has Quick Disconnect (QD) feature to separate carrier from chassis rear for assembly or servicing
CMS-15 & Variants
CMS-15
- Constructed from Aluminum Alloy & Stainless Steel components with anodized and passivated finishes
- Mounts to electronic rack rails using .625 inch spacing for 2U and taller installations
- Cannot mount to 1U rack chassis locations, see CMS-15-1U for suggested use
- Mounts to rack rail secondary mounting flange
- Closed length of 16-1/2 inches allows 29-inch outward movement to support various cable installations
- Thru holes on carriers arms allows mounting features to be attached to retain cables securely
- Moving carrier arm does not mount to chassis rear and allows service loop from cables to chassis
CMS-15-1U
- Constructed from Aluminum Alloy & Stainless Steel components with anodized and passivated finishes
- For direct mounting to electronic rack 1U chassis spacing this cable carrier can mount to several locations within 2U and taller rack spacing
- Mounts to rack rail secondary mounting flange
- Closed length of 16-1/2 inches allows 29-inch outward movement to support various cable installations
- Thru holes on carriers arms allows mounting features to be attached to retain cables securely
- Moving carrier arm does not mount to chassis rear and allows service loop from cables to chassis
CMS-15-QD
- Constructed from Aluminum Alloy & Stainless Steel components with anodized and passivated finishes
- For direct mounting to electronic rack 1U chassis spacing this cable carrier can mount to several locations within 2U and taller rack spacing
- Mounts to rack rail secondary mounting flange
- Closed length of 16-1/2 inches allows 29-inch outward movement to support various cable installations
- Thru holes on carriers arms allows mounting features to be attached to retain cables securely
- Moving carrier arm mounts to chassis rear and allows service loop from cables to chassis
Moving carrier arm has Quick Disconnect (QD) feature to separate carrier from chassis rear for assembly or servicing
MCR & Variants
MCR-1019
- Metal Cable Retractor (MCR) is cable carrier with attachment directly to electronic rack rail with additional attachment to rear of slide rail or chassis rear.
- Contact JES sales for additional information on attachment to slide rail or chassis
- Height of carrier installs into 1U rack rail location
- Carrier can be installed into several locations on rack rail for 2U and taller rack spacing
- Carbon steel construction with included cable straps, ventilation windows, and tool-less disconnect of carrier moving arm
- Finish is zinc plated
- Overall depth allows movement to maximum travel distance and provides cable attachment with generous bend radius for fiber optics, heavy cables, or cables requiring greater bending
MCR-1022
- Metal Cable Retractor (MCR) is a 3-arm cable carrier typically for excess chassis outward travel distance
- Carrier design allows mounting to slide rail directly without attachment to rack rail or chassis
- Contact JES sales for additional information on attachment to slide rail stationary and moving members
- Carbon steel construction with cable straps included
- Finish is zinc plated
- When mounted carrier has tool-less pins to engage slide rails
- 3-arm construction provides greater travel outward than 2-arm carriers
- Cable routing thru middle carrier arm has plastic protection to prevent damage to cable sheathing
MCR-1054
- Metal Cable Retractor (MCR) is a 2-arm carrier suitable for multiple locations within 1U electronic rack spacing and wider range of locations for 2U and tall rack heights
- Available mounting to both 1/2-inch and 5/8-inch rack rail attachment points
- Quick disconnect pins allow tool-less installation or removal from their mounting brackets
- Pre-formed pockets allow cable strap attachment
- Carbon steel construction with zinc plated finish or Stainless Steel construction is available
- Carrier can be attached to rack rails and rear of chassis using suppled mounting brackets
Contact JES sales for additional mounting information
CMS-350 & Variants

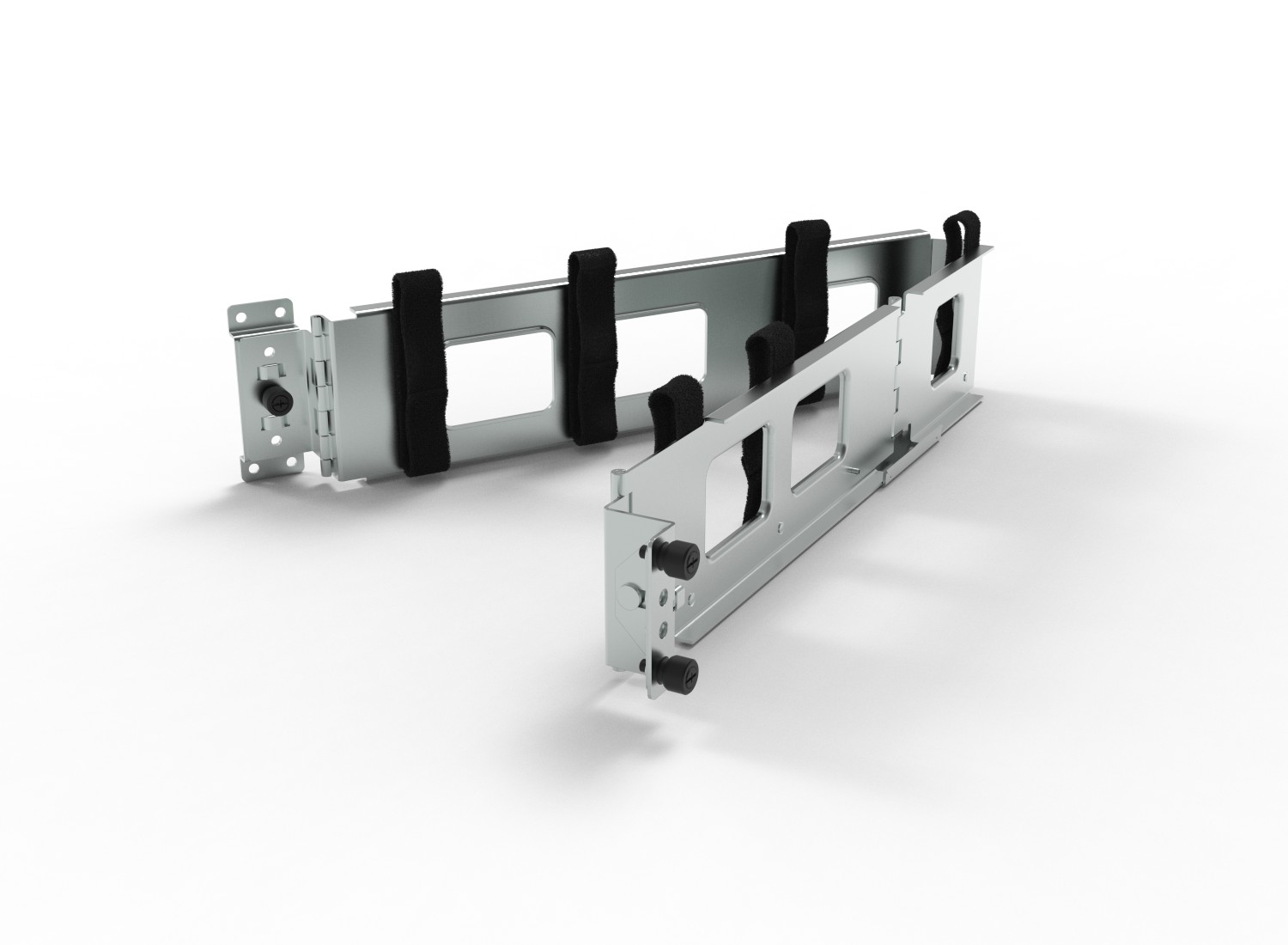

CMS-350
- Cable Management System (CMS) is a 2-arm cable carrier installed in 2U and taller electronic rack spaces
- Carrier is outfitted with tool-less installation, cable support straps, ventilation windows, and adjustable release clamp to aid during cable installation
- Clamp allows carrier to become deeper to allow cable routing, then closes to minimize cable bend radius
- Adapter Bracket is installed onto chassis rear to allow tool-less installation
- Stationary mounting is directly to rear rack rail using tool-less thumb screws or individual screws
- Non-metallic round washers are included to properly center the carrier mounting into racks with square holes. This washer is not installed for racks using cage nuts
- Carrier attaches directly to rack rails with tapped mounting holes
- Separate Bar Nut can be ordered to mount into rack rails with square or round mounting holes
CRS-30 & Variants
CRS-30
- Cable Retractor Steel (CRS) 2-arm cable carrier is equipped with torsion springs to aid in opening and closing of chassis outward and inward to stationary enclosure
- Carbon steel construction with finish zinc plating
- Installs into 2U or taller rack spacing locations onto secondary enclosure rack rail
- Moving arm does not attach to rear of chassis and allows cable service loop in various positions
- Closed depth of 1-inch allows total travel of 26-inches outward
- Added mounting holes on each arm allows cable straps or other cable attachments to be secured
CRS-30-HD
- Cable Retractor Steel (CRS) 2-arm cable carrier is equipped with torsion springs to aid in opening and closing of chassis outward and inward to stationary enclosure
- Carbon steel construction with finish zinc plating
- High strength mounting bracket to cabinet and to arms middle connection point reduces sag when mounting large diameter cables, shielded cables, or multiple cable onto carrier
- Arms allow cables to be installed in multiple positions
- Installs into 2U or taller rack spacing locations onto secondary enclosure rack rail
- Moving arm does not attach to rear of chassis and allows cable service loop in various positions
- Closed depth of 1-inch allows total travel of 26-inches outward
- Added mounting holes on each arm allows cable straps or other cable attachments to be secured
CRS-25 & Variants
CRS-25
- Cable Retractor Steel (CRS) 2-arm cable carrier is equipped with torsion springs to aid in opening and closing of chassis outward and inward to stationary enclosure
- Carbon steel construction with finish zinc plating
- Installs into 2U or taller rack spacing locations onto traditional enclosure rack rail
- Moving arm does not attach to rear of chassis and allows cable service loop in various positions
- Closed depth of 1-inch allows total travel of 26-inches outward
- Added mounting holes on each arm allows cable straps or other cable attachments to be secured
CRS-25-1U
- Cable Retractor Steel (CRS) 2-arm cable carrier is equipped with torsion springs to aid in opening and closing of chassis outward and inward to stationary enclosure
- Carbon steel construction with finish zinc plating
- Installs into 1U rack space or into various locations with taller rack spacing locations
- Attaches to traditional enclosure rack rail
- Moving arm does not attach to rear of chassis and allows cable service loop in various positions
- Closed depth of 1-inch allows total travel of 26-inches outward
- Added mounting holes on each arm allows cable straps or other cable attachments to be secured
CRS-25HD
- Cable Retractor Steel (CRS) 2-arm cable carrier is equipped with torsion springs to aid in opening and closing of chassis outward and inward to stationary enclosure
- Carbon steel construction with finish zinc plating
- High strength mounting bracket to cabinet and to arms middle connection point reduces sag when mounting large diameter cables, shielded cables, or multiple cable onto carrier
- Arms allow cables to be installed in multiple positions
- Installs into 2U or taller rack spacing locations onto traditional enclosure rack rail
- Moving arm does not attach to rear of chassis and allows cable service loop in various positions
- Closed depth of 1-inch allows total travel of 26-inches outward
- Added mounting holes on each arm allows cable straps or other cable attachments to be secured
