Aluminum Telescopic Slides

S280H Series Light/Medium Duty Aluminum Slides

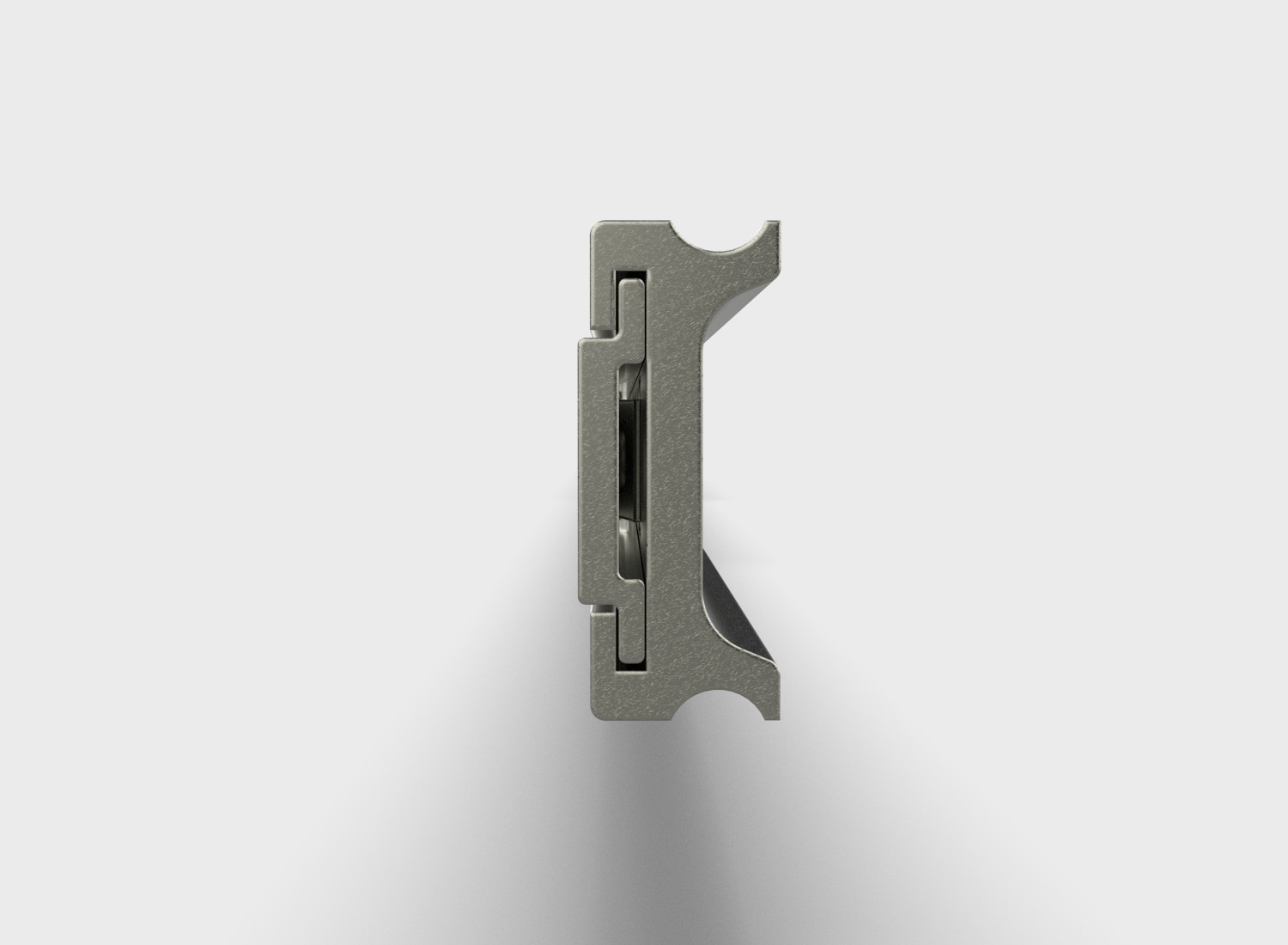

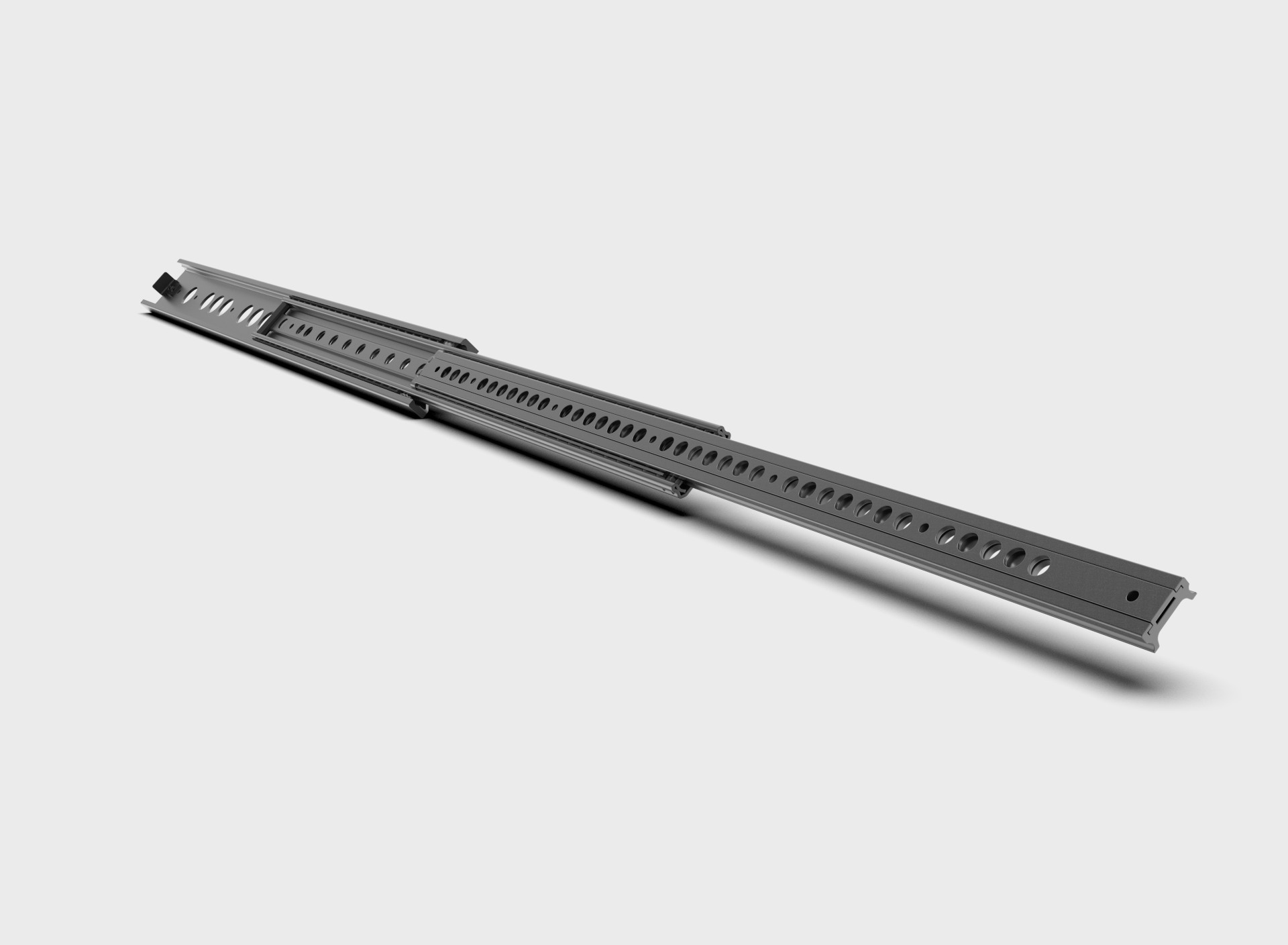

The S280H is a 3-member slide that is 0.63″ wide x 2.13″ tall.  Developed for the Aerospace market, this Hybrid slide contains an aluminum inner and outer member, with a stainless steel intermediate member to improve strength and reduce deflection.  Though the S280H is often used in an undermount orientation for light loads, it truly shines in a side-mounted orientation, where you’ll find an increase of up to 70% in load rating, making this an excellent choice for payloads of up to 200lbs.  This profile can be modified with an elevated black anodized finish and polymer balls, indicated by our Executive series modifier, and can be found with our Executive Series slides here.

  • Tech Specs
  • Custom Features
  • Downloads
S280H Standard Features
  • Materials:
    • High Strength Aluminum, Corrosion Resistant Steel, Rubber, and Plastic
  • Inner T-Section Disconnect
  • Load Rating: Contact JES
  • 1.00″ Undertravel, Non-Locking
  • Finish:

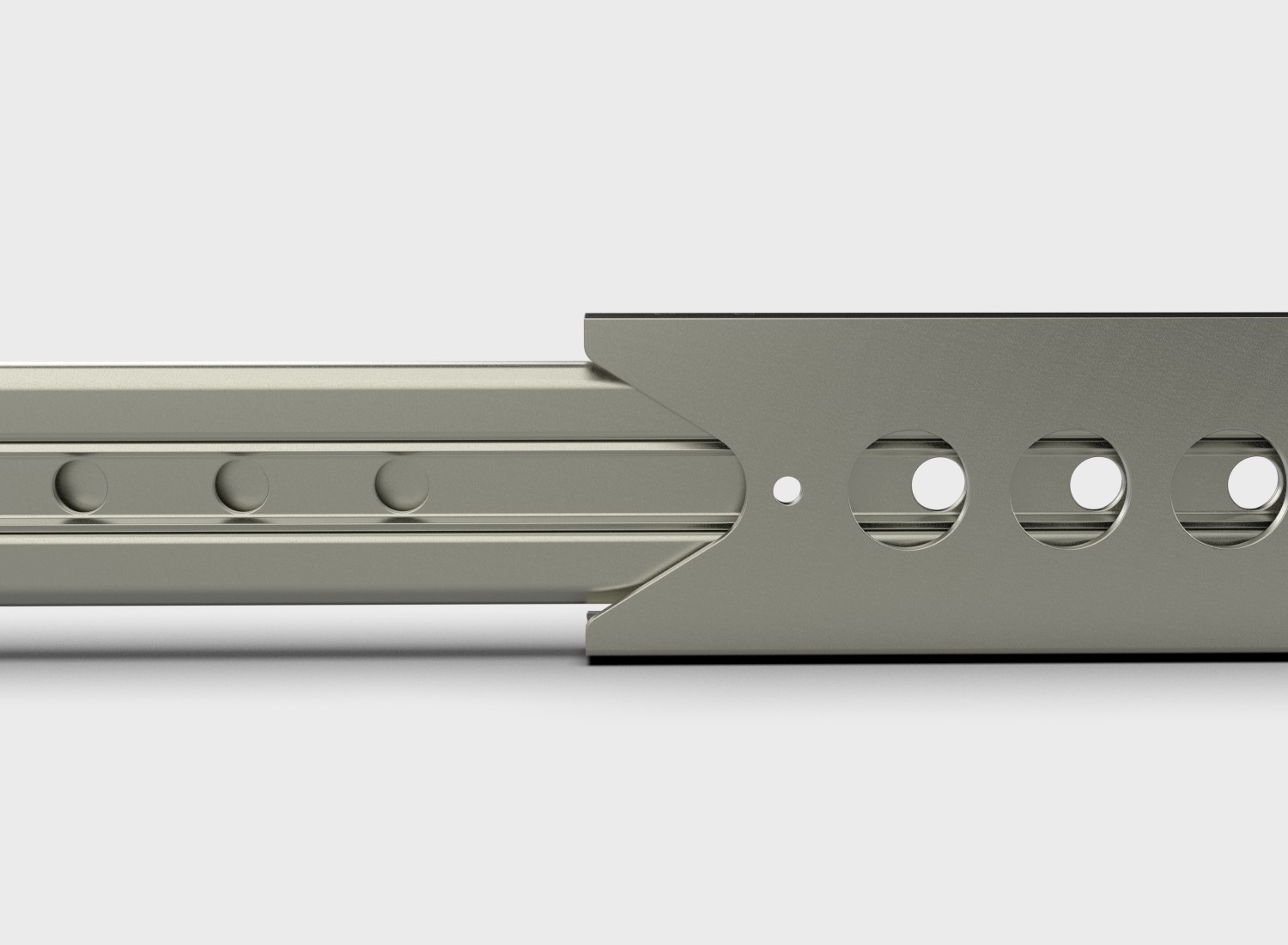

    • Clear Anodized (Aluminum)
    • Clear or Black Oxide (Stainless Steel)

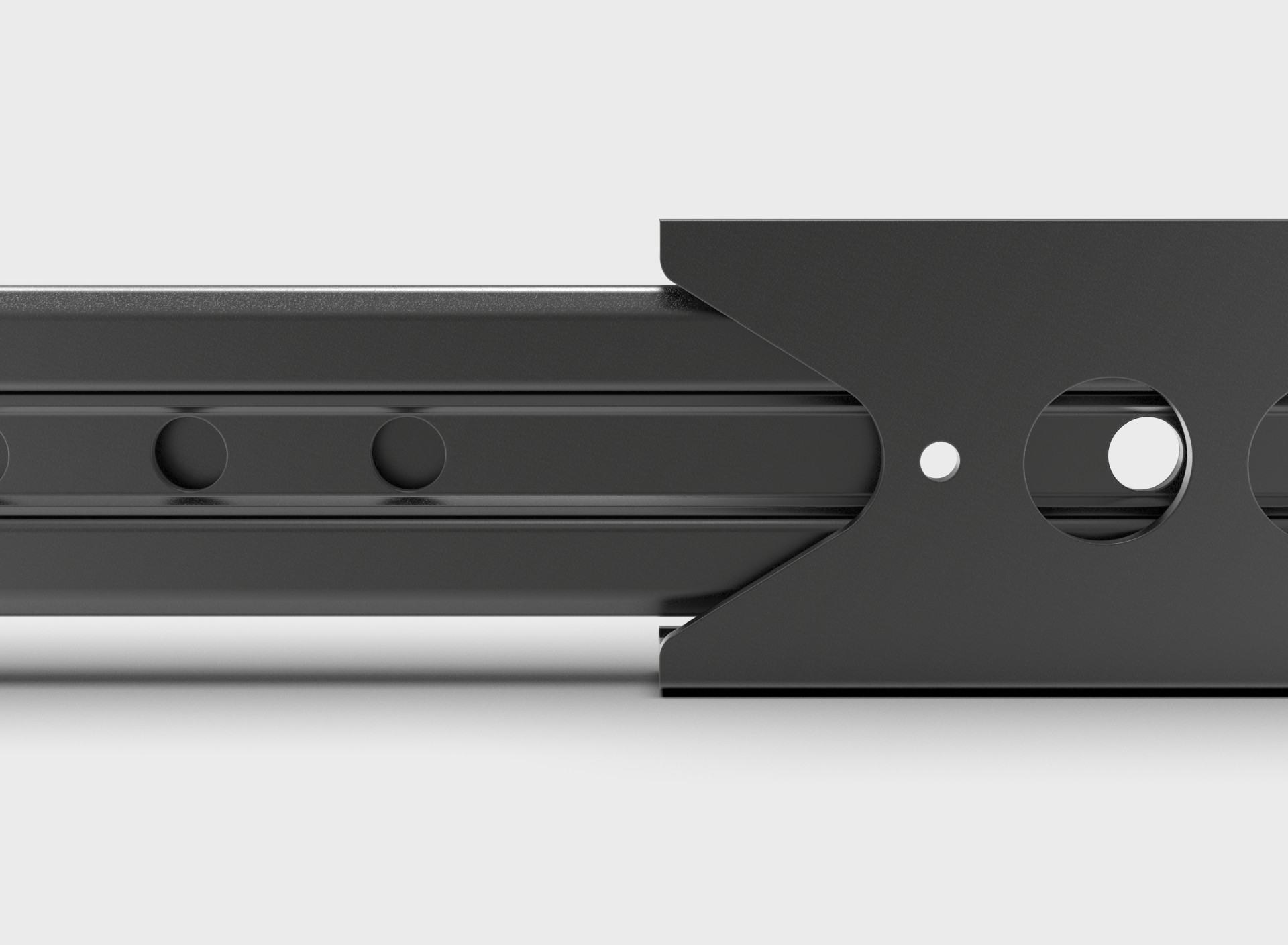

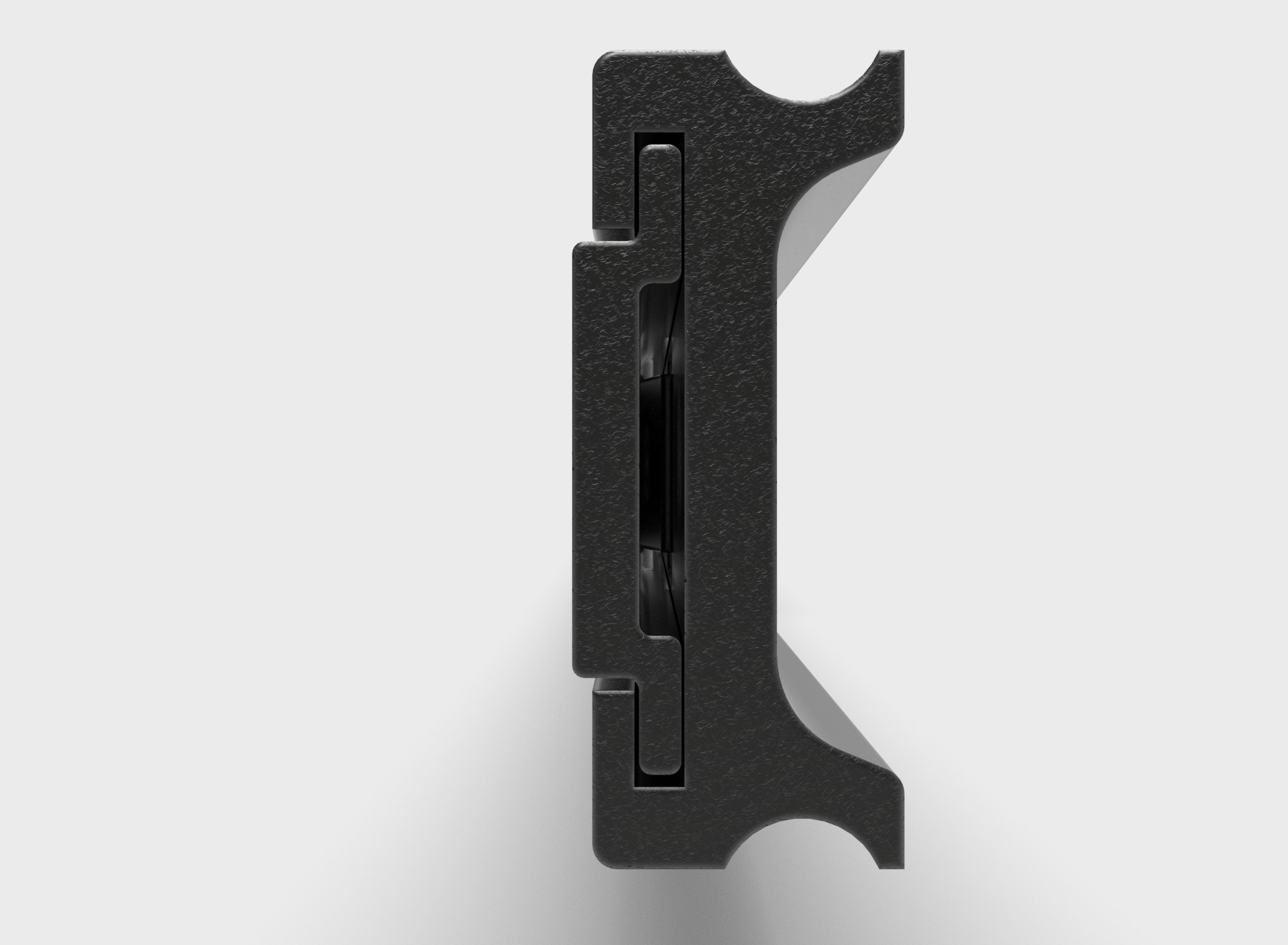

  • Black Anodized Finish
  • T-Section Disconnect
  • Polymer Ball-Bearings


The standard 227 includes a stainless steel intermediate member to sustain higher loads.



The S227EZCH includes both the intermediate stainless steel member and our EZ Close (soft-close) solution.
