Aluminum Telescopic Slides

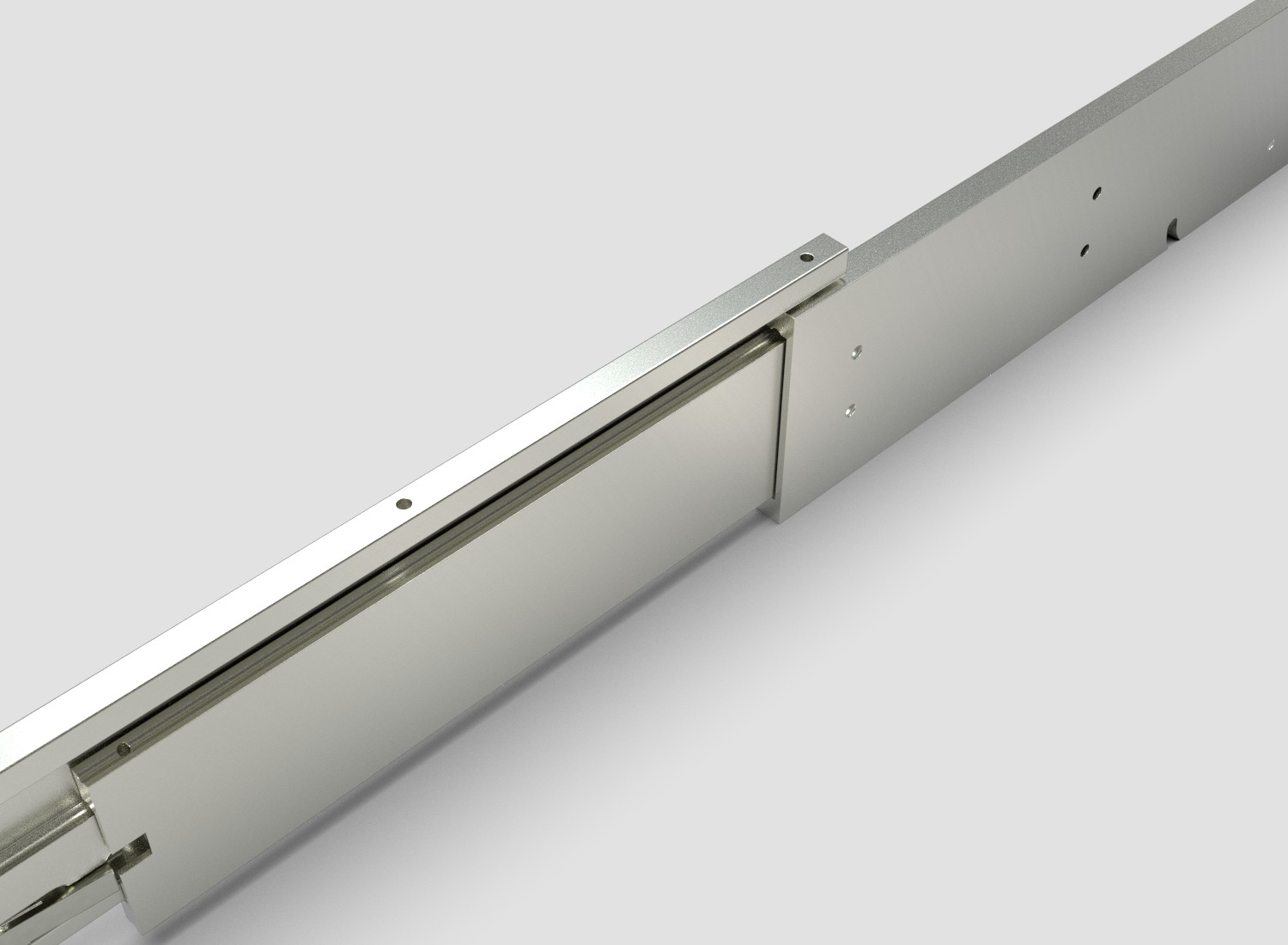

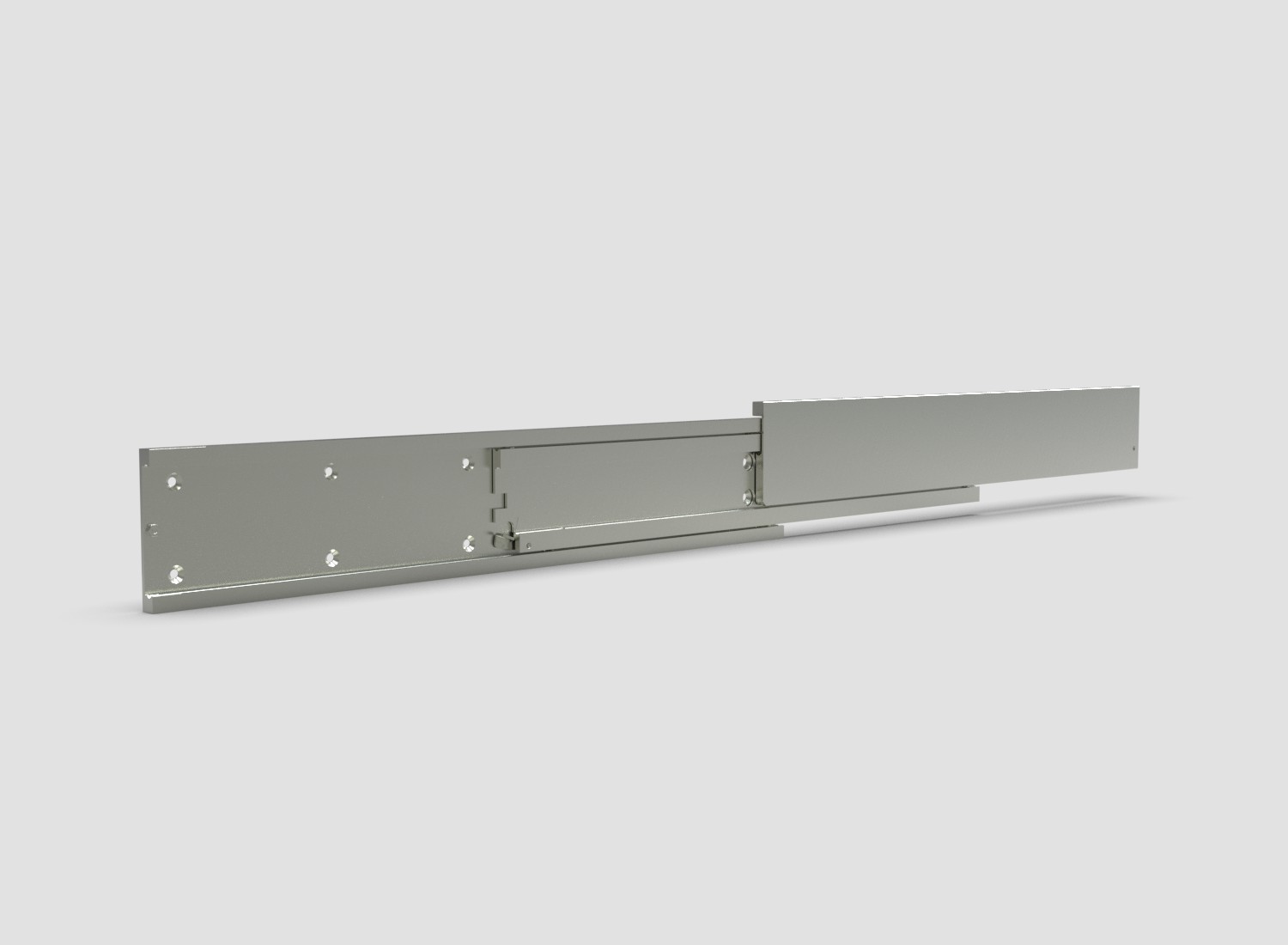

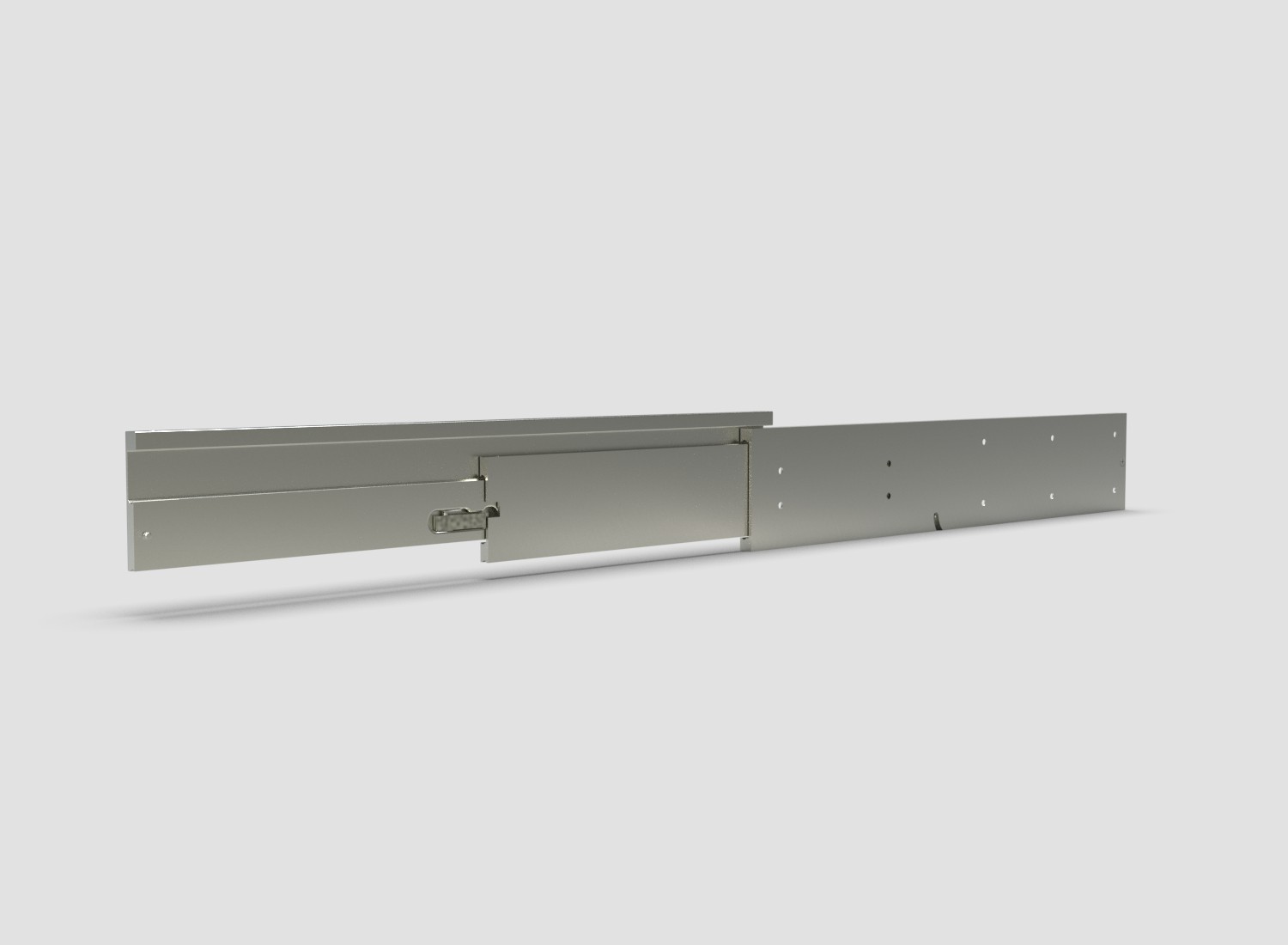

156 Series Medium-Duty Aluminum Slides

The 156 series aluminum slides are .53″ x 4.00″ tall and manufactured in high strength aluminum with MIL-A-8625A, Type II, Class 1 finishes. Optional finishes and customization are available. The 156 is a 3 section slide with a load rating of up to 240 lbs.

For Product Support, please contact your Local Representative 714-665-4400 or email salessupport@jonathanengr.com

  • Tech Specs
  • Custom Features
  • Custom Solutions
  • Downloads
156 Standard Features
  • Material: Aluminum
  • Load Rating: 136 to 240 lbs
  • Lengths: 10″ to 36″
  • Travel: 9″ to 35″
  • Full ball bearing
  • Clear anodize finish
  • Any length
  • Any travel
  • Custom hole patterns and sizes
  • Shock absorption
  • Integrated closed position captivity
  • Custom finishes
  • COTS Trays
  • Ruggedized Assemblies
  • Integrated Kits
  • Sheet Metal Assemblies
  • Cable Management
  • Bracketry
  • Hardware Kits
  • Trays
  • Precision Machined Components
156

156 Catalog Drawing
