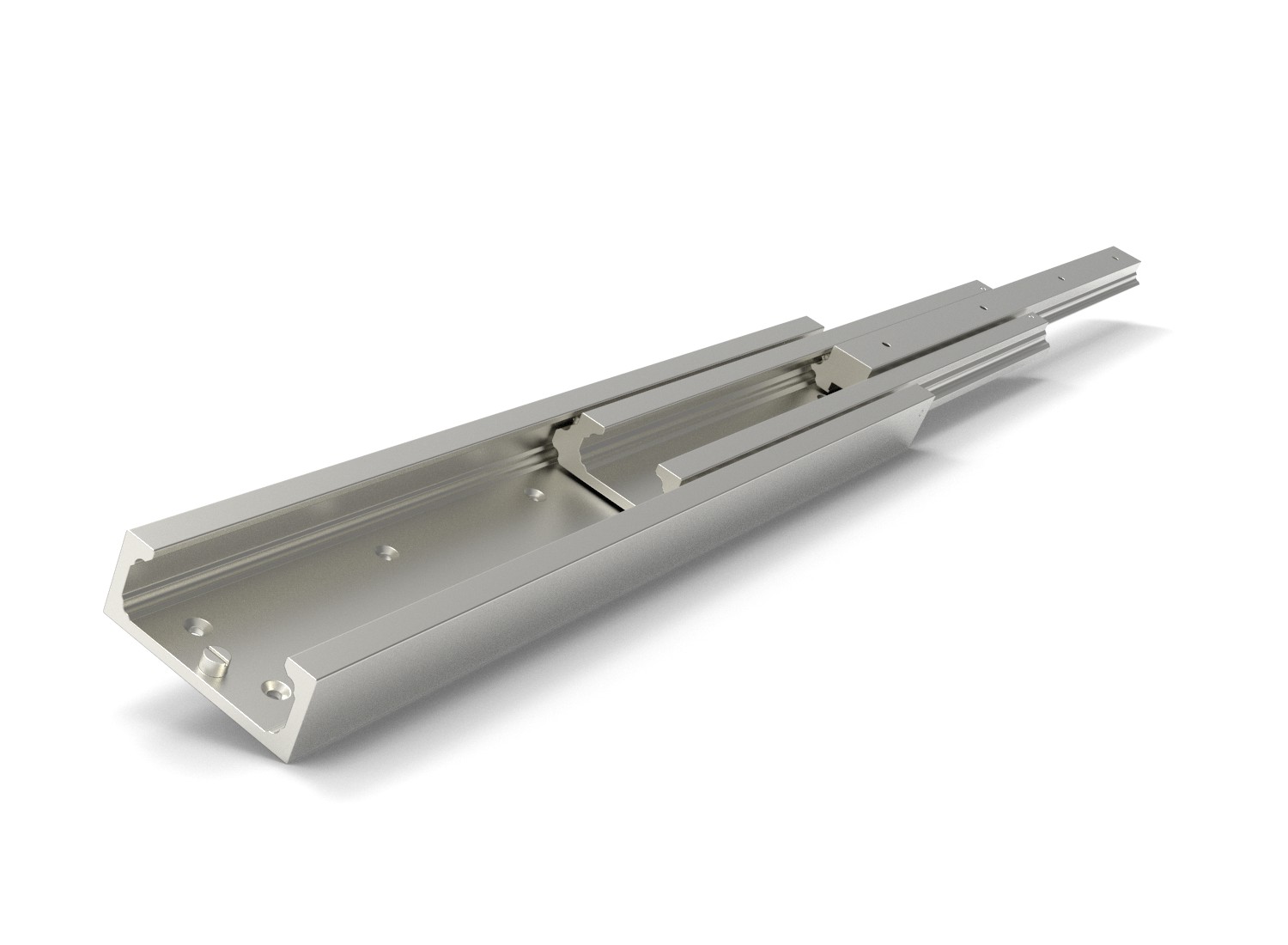

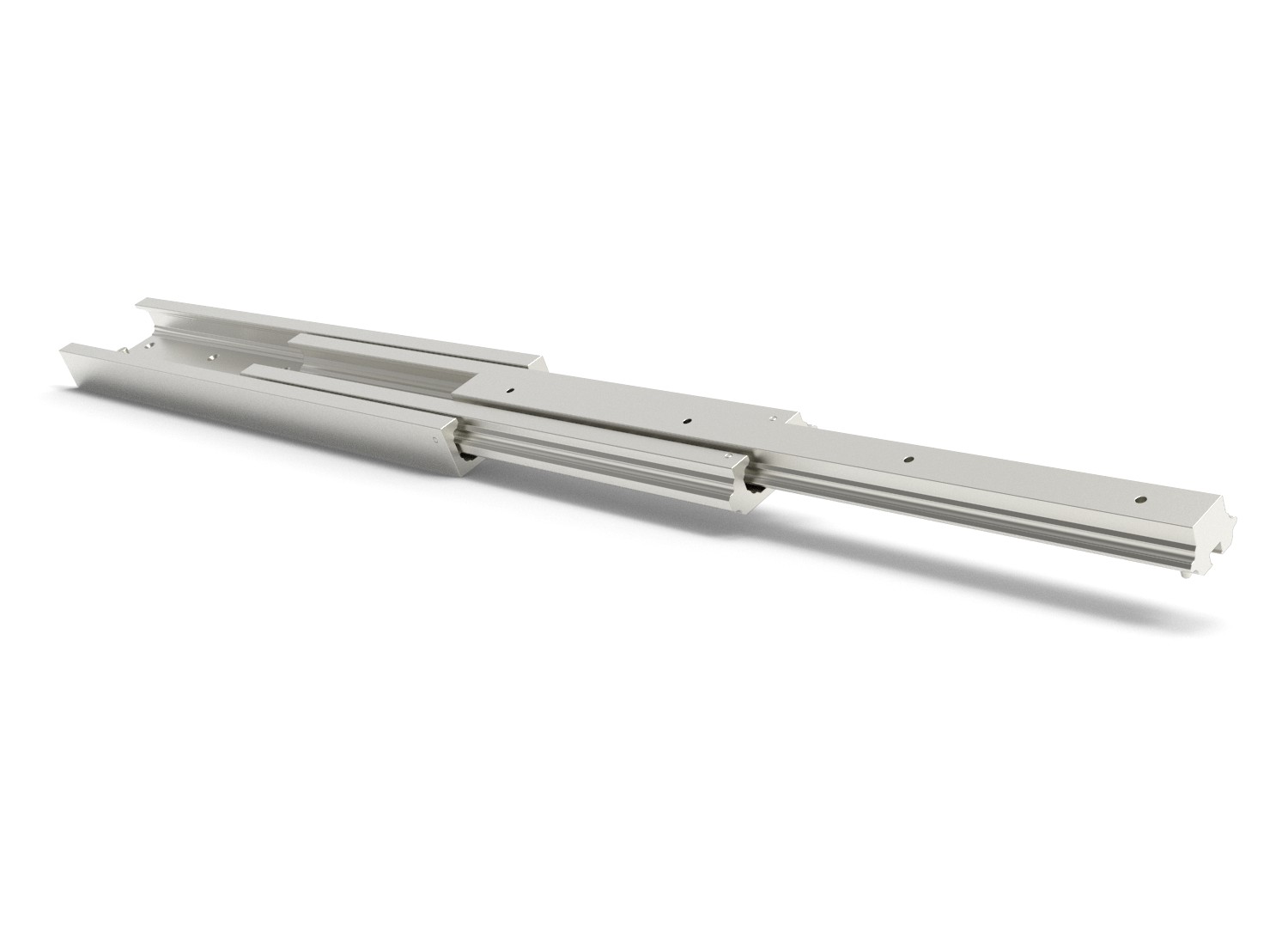

300 Series Heavy-Duty Aluminum Slides

The 300 series aluminum slides are 1.50″ x 3.50″ tall and manufactured in high strength aluminum with MIL-A-8625A, Type II, Class 1 finishes. Optional finishes and customization are available. The 300 is a 3 section slide with a load rating of up to 522 lbs per pair.

For Product Support, please contact your Local Representative 714-665-4400 or email salessupport@jonathanengr.com

Tech Specs
Custom Features
Custom Solutions
Downloads

300 Series Standard Features

Material: Aluminum
Load Rating: 410 to 522 lbs/pair
Lengths: 14″ to 36″
Travel: 13″ to 35″
Full ball bearing
T-Section Disconnect (300 with T-Section Disconnect Series Only)
Interchangeability (300 with T-Section Disconnect Only)
Clear anodize finish

Any length
Any travel
Custom hole patterns and sizes
Shock absorption – Available for 300 with T-Section Disconnect Series
Custom finishes

COTS Trays
Ruggedized Assemblies
Integrated Kits
Sheet Metal Assemblies
Cable Management
Bracketry
Hardware Kits
Trays
Precision Machined Components

300

300 Catalog Drawing

300T/LR

300T/LR Catalog Drawing

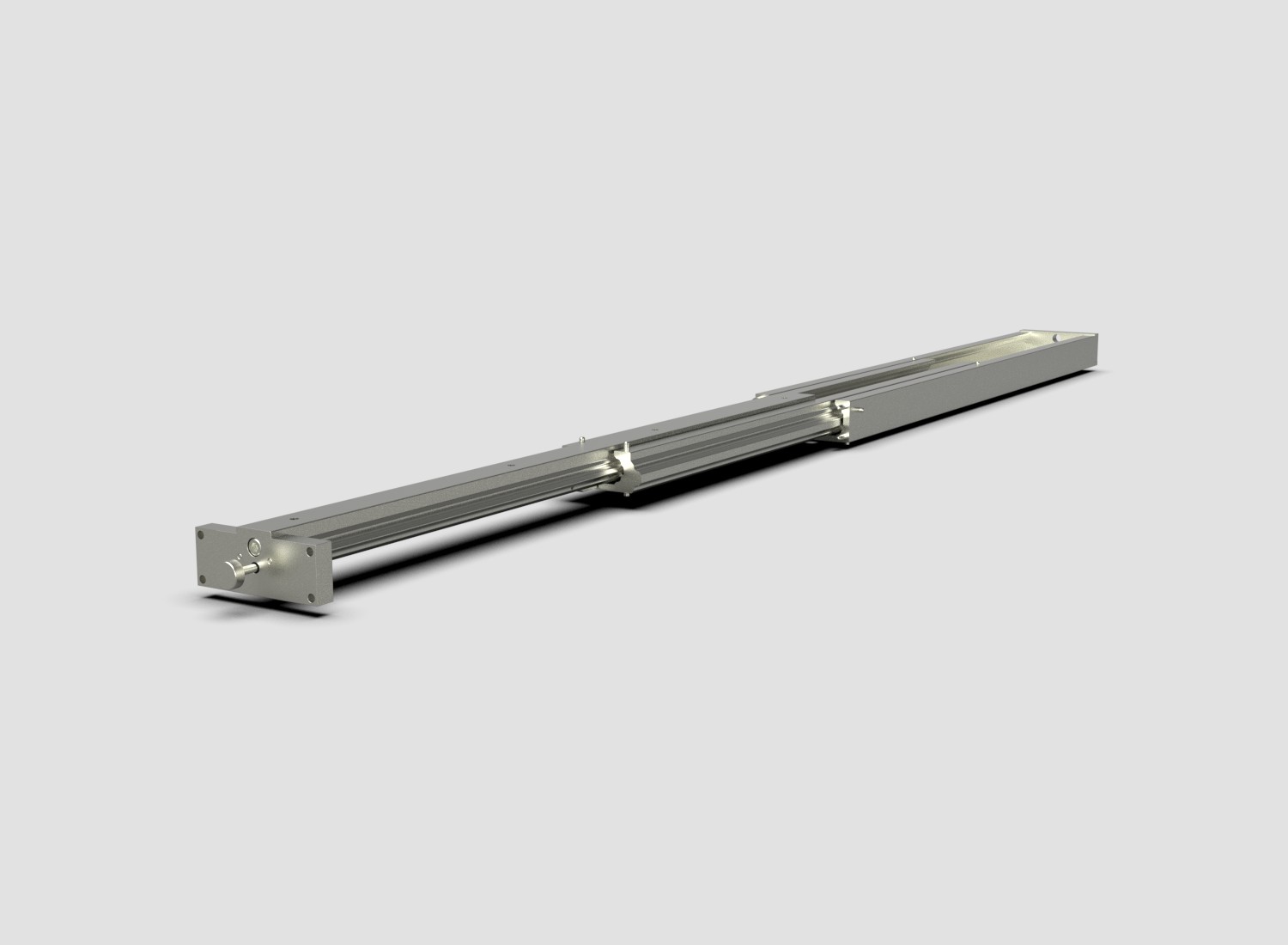

300SB/LR

300SB/LR Catalog Drawing

300T

The T modifier indicates that the inner member possesses a T section that disconnects for more efficient installation and interchangeability.

300L

The L modifier indicates that the slide possesses a Lock Open feature, and will only return to the closed position when the lock is disengaged.

300SB

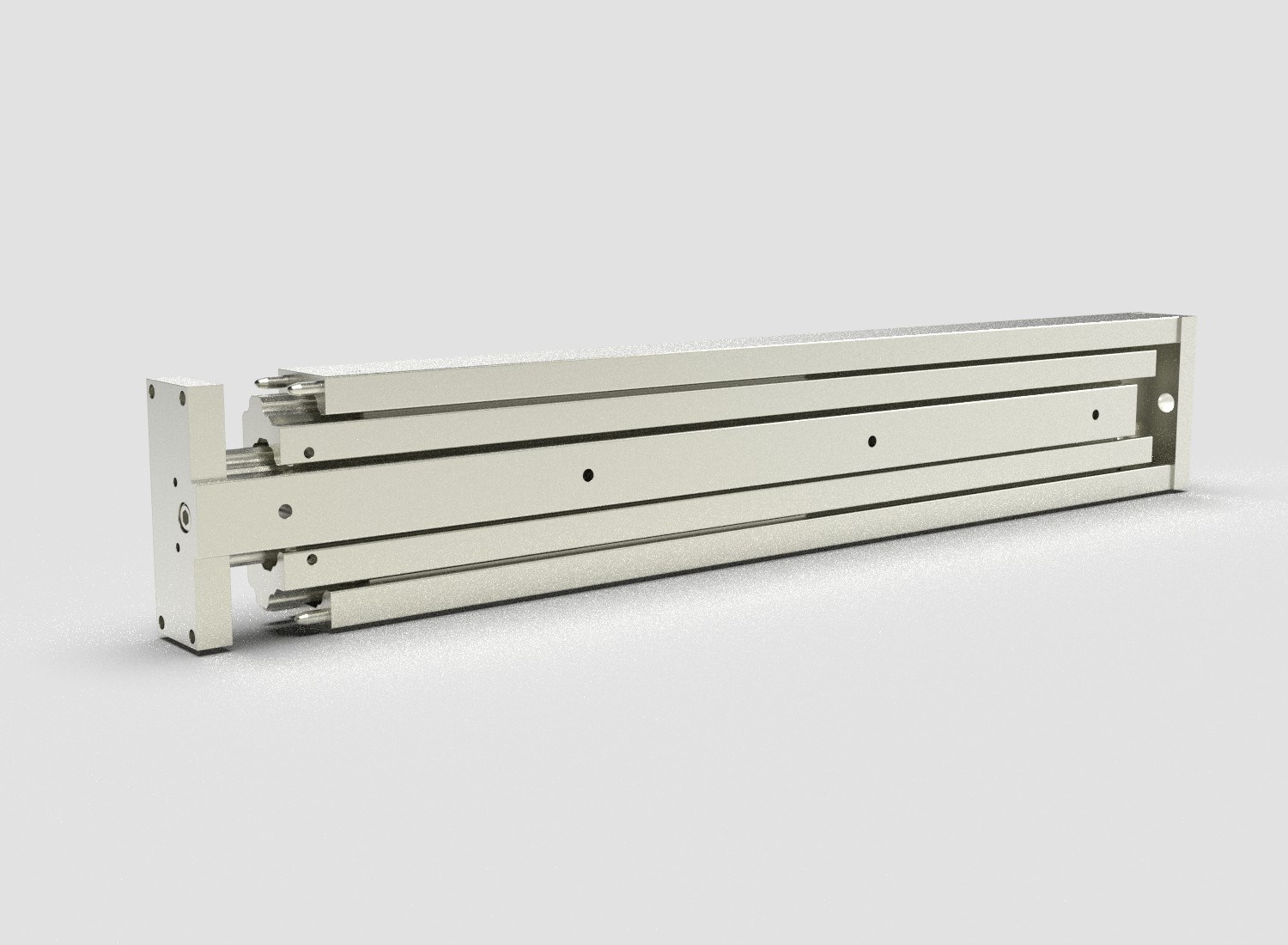

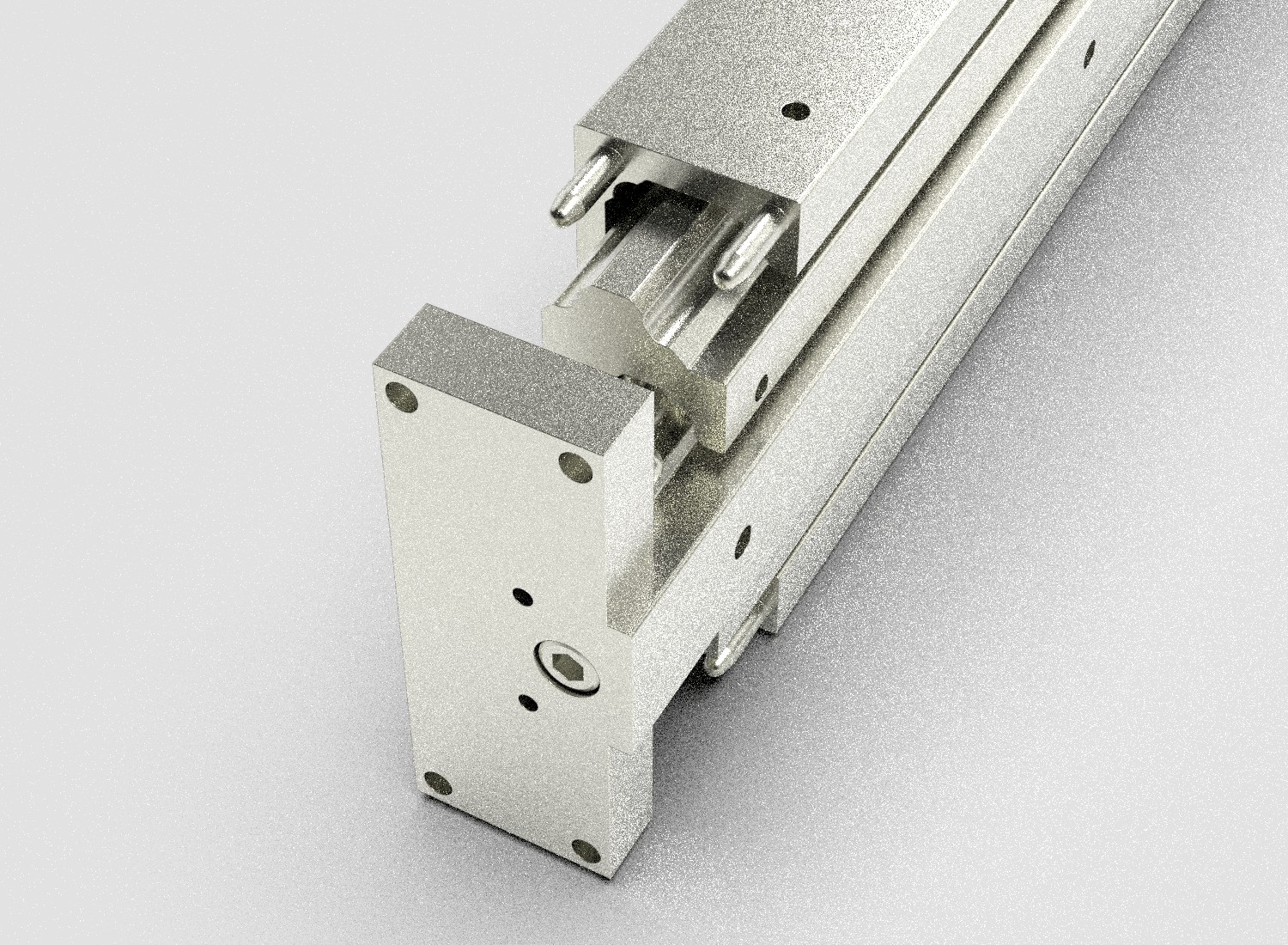

The 300SB & SBLR include Shock Block pins that engage when the slide is returned to the closed position for shock and vibration protection.

300LR

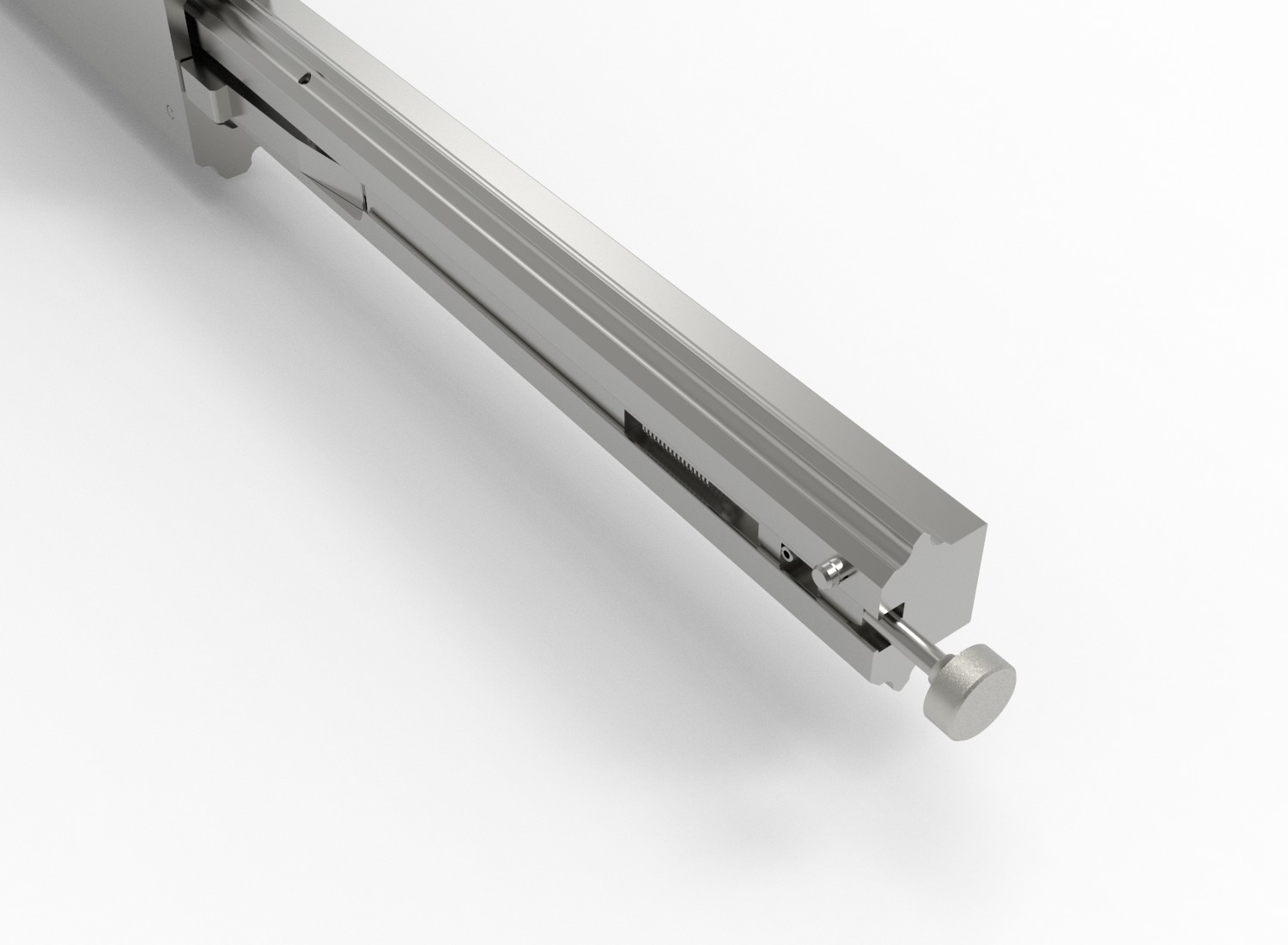

Includes Lock Release feature

300SBL

Shock Block feature and Lock Open.
