Aluminum Telescopic Slides

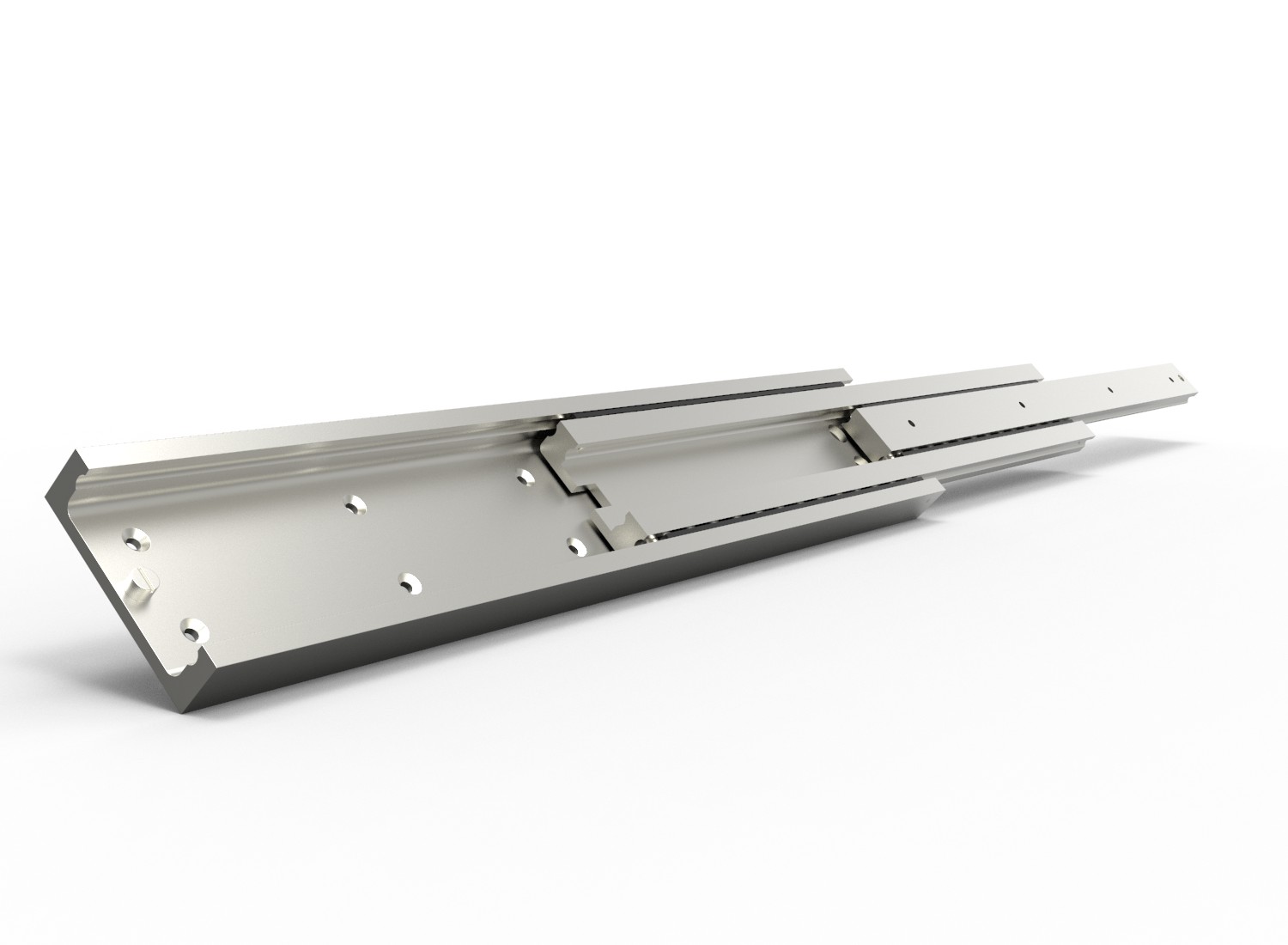

350 Series Heavy-Duty Aluminum Slides

The 350 series aluminum slides are 1.00″ x 3.50″ tall and manufactured in high strength aluminum with MIL-A-8625A, Type II, Class 1 finishes.  The 350 is a 3 section slide with a load rating of up to 500 lbs.


The 350 has an optional Dyna Race feature, that uses a stainless steel insert to increase load carrying capacity, cycle life, and shock/vibration protection.  Consult the DR350 catalog drawing to compare the load rating between the standard 350 and DR350.


For Product Support, please contact your Local Representative 714-665-4400 or email

  • Tech Specs
  • Custom Features
  • Custom Solutions
  • Downloads
350 Standard Features
  • Material: Aluminum
  • Load Rating: 240 to 460 lbs (Consult Drawing For Dyna Race Comparison)
  • Lengths: 12″ to 36″
  • Travel: 11″ to 35″
  • Full ball bearing
  • Clear anodize finish
  • Any length
  • Any travel
  • Custom hole patterns and sizes
  • Integrated closed position captivity
  • Custom finishes
  • COTS Trays
  • Ruggedized Assemblies
  • Integrated Kits
  • Sheet Metal Assemblies
  • Cable Management
  • Bracketry
  • Hardware Kits
  • Trays
  • Precision Machined Components


The L modifier indicates that the slide possesses a Lock Open feature, and will only return to the closed position when the lock is disengaged.



One or more members includes reinforced Channels with our DynaRace technology
