Aluminum Telescopic Slides

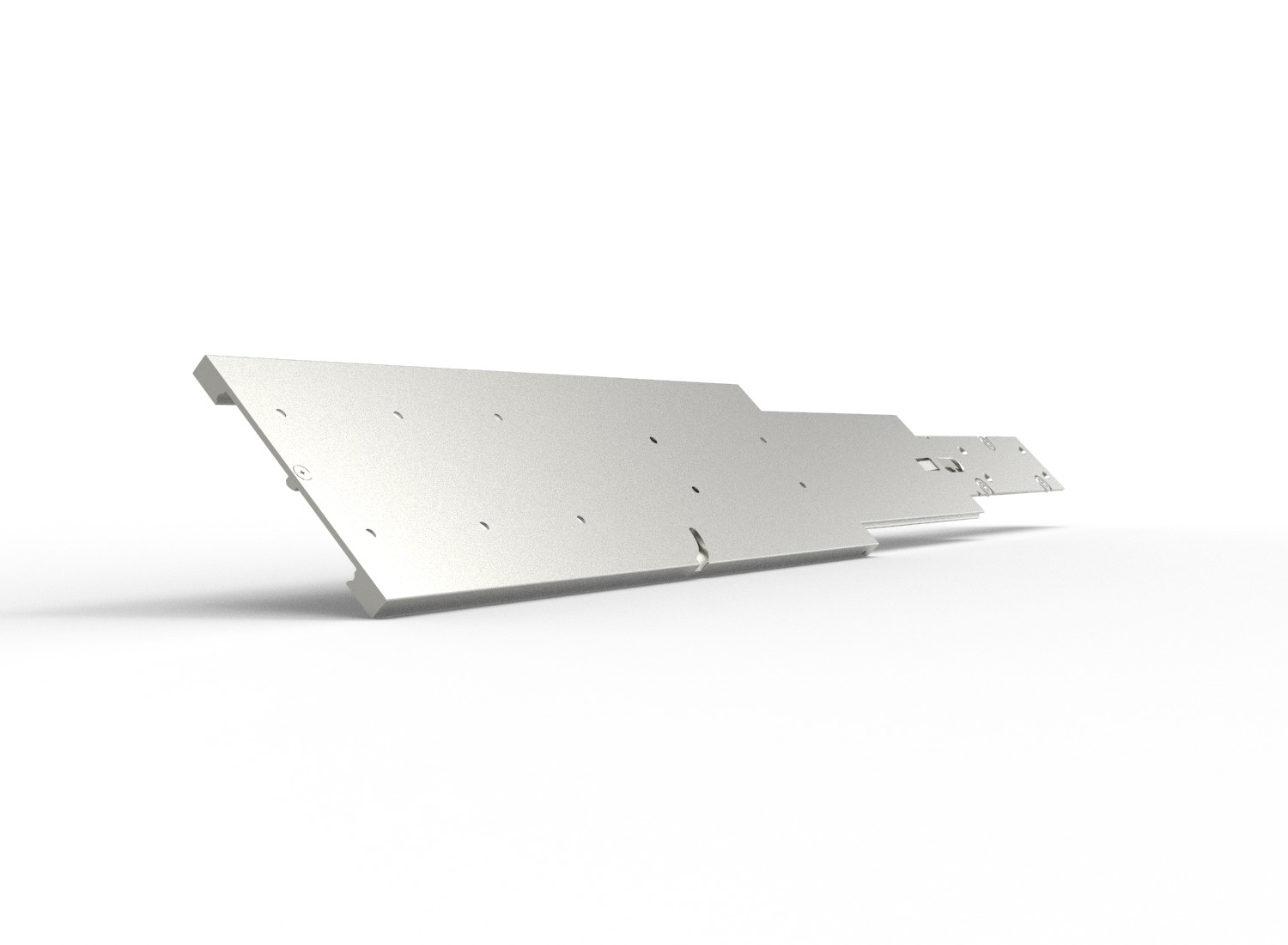

600 Series Heavy-Duty Aluminum Slides

The 600QD/L/QD series aluminum slides are .50″ x 5.50″ tall and manufactured in high strength aluminum with MIL-A-8625A, Type II, Class 1 finishes. Optional finishes and customization are available. The 600QD/L/QD is a 3 section slide with a load rating of up to 350 lbs.


For Product Support, please contact your Local Representative 714-665-4400 or email

  • Tech Specs
  • Custom Features
  • Custom Solutions
  • Downloads
  • Material: Aluminum
  • Load Rating: Up to 350lbs. per pair
  • Lengths: 10″ to 28″
  • Travel: 9″ to 27″
  • QD-Quick Disconnect Options
  • L- Lock Options
  • QDA- Quick Disconnect w/ Adjustable Shock Blocks Options
  • Any length
  • Any travel
  • Custom hole patterns and sizes
  • Custom finishes
  • COTS Trays
  • Ruggedized Assemblies
  • Integrated Kits
  • Sheet Metal Assemblies
  • Cable Management
  • Bracketry
  • Hardware Kits
  • Trays
  • Precision Machined Components


The L modifier indicates that the slide possesses a Lock Open feature, and will only return to the closed position when the lock is disengaged.



The inner member includes a quick disconnect for more efficient installation and servicing.



Indicates that the slide posses a quick disconnect feature as well as an adjustable shock block for increased security and multi-axis absorption.
