Carbon Steel Telescopic Slides

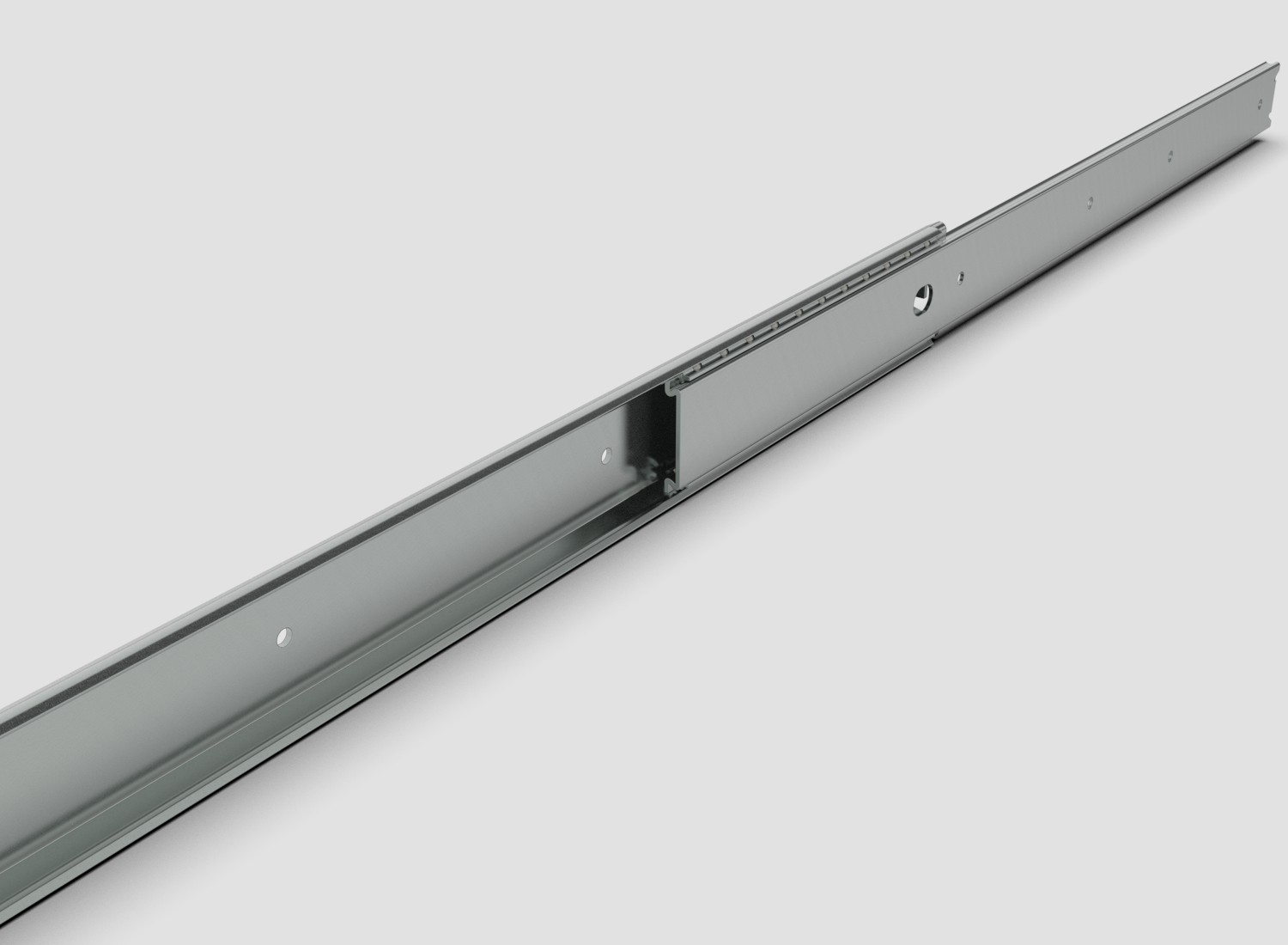

311 Series Light/Medium Duty Steel Slides
The 311 series steel slides are 1.60″ x .47″ wide and manufactured in carbon steel with standard zinc plating. The 311 is a 2 section slide with a load rating of up to 125 lbs.
- Tech Specs
- Downloads
311 Series Standard Features
- Material: Steel
- Load Rating: 70 to 125 lbs
- Lengths: 12″ to 28″
- Travel: 8″ to 19″
- (For linear motion and two-way travel slides, please refer to product specification sheets)
- Nonmetallic stops open and closed
- Clear zinc finish
311L
331L Catalog Drawing
311DC
311DC Catalog Drawing
311DP
311DP Catalog Drawing
311LM
311LM Catalog Drawing
311TW
311TW Catalog Drawing
311D
311D contains pockets within the inner member for more efficient installation.

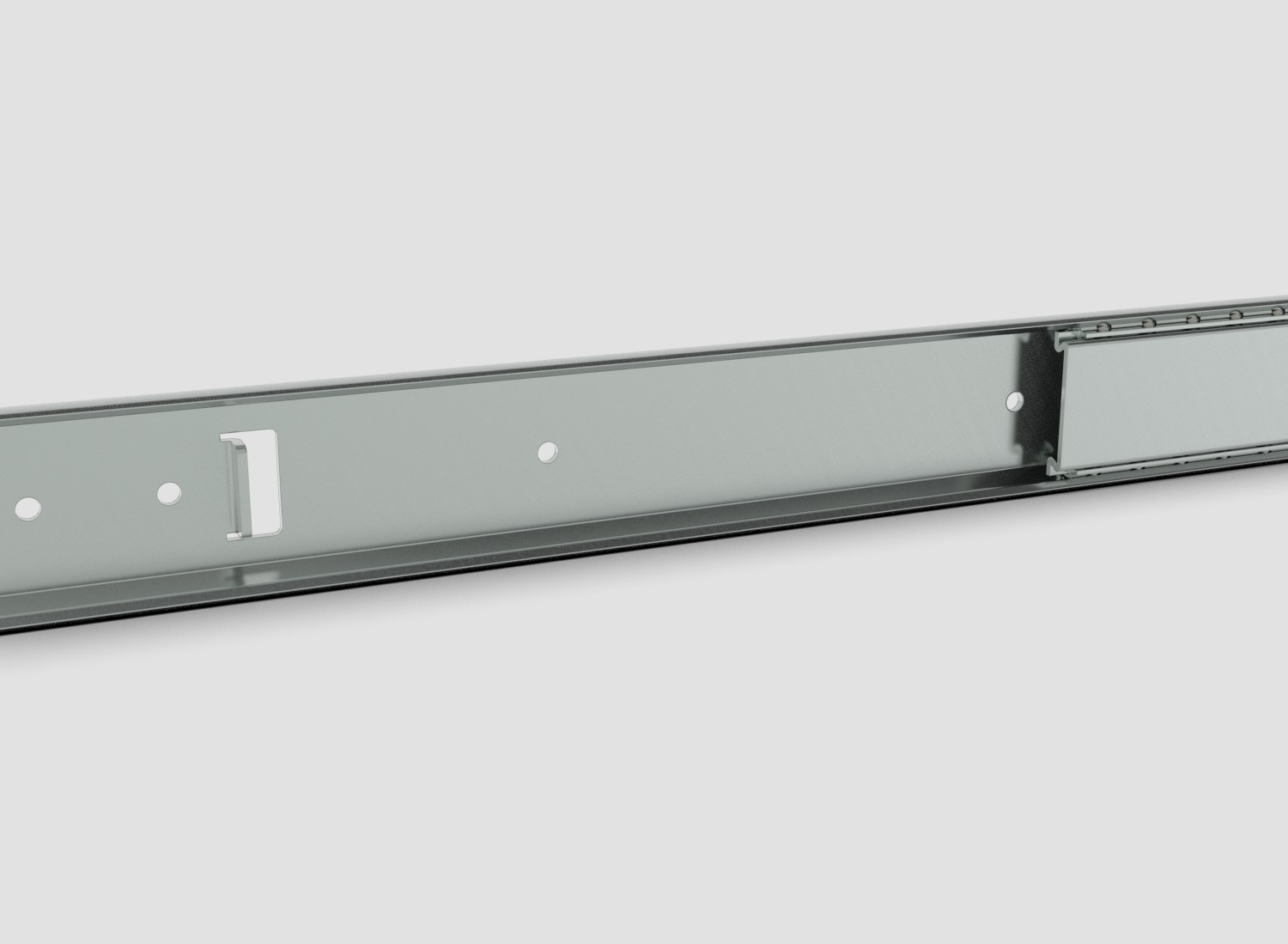

311DC
The 311DC contains a detent feature that requires minimal force to overcome, acting as a cost-effective solution for securing chassis/drawer units.
311L
311L has an integrated lock-open feature to prevent inner member from dislocation.

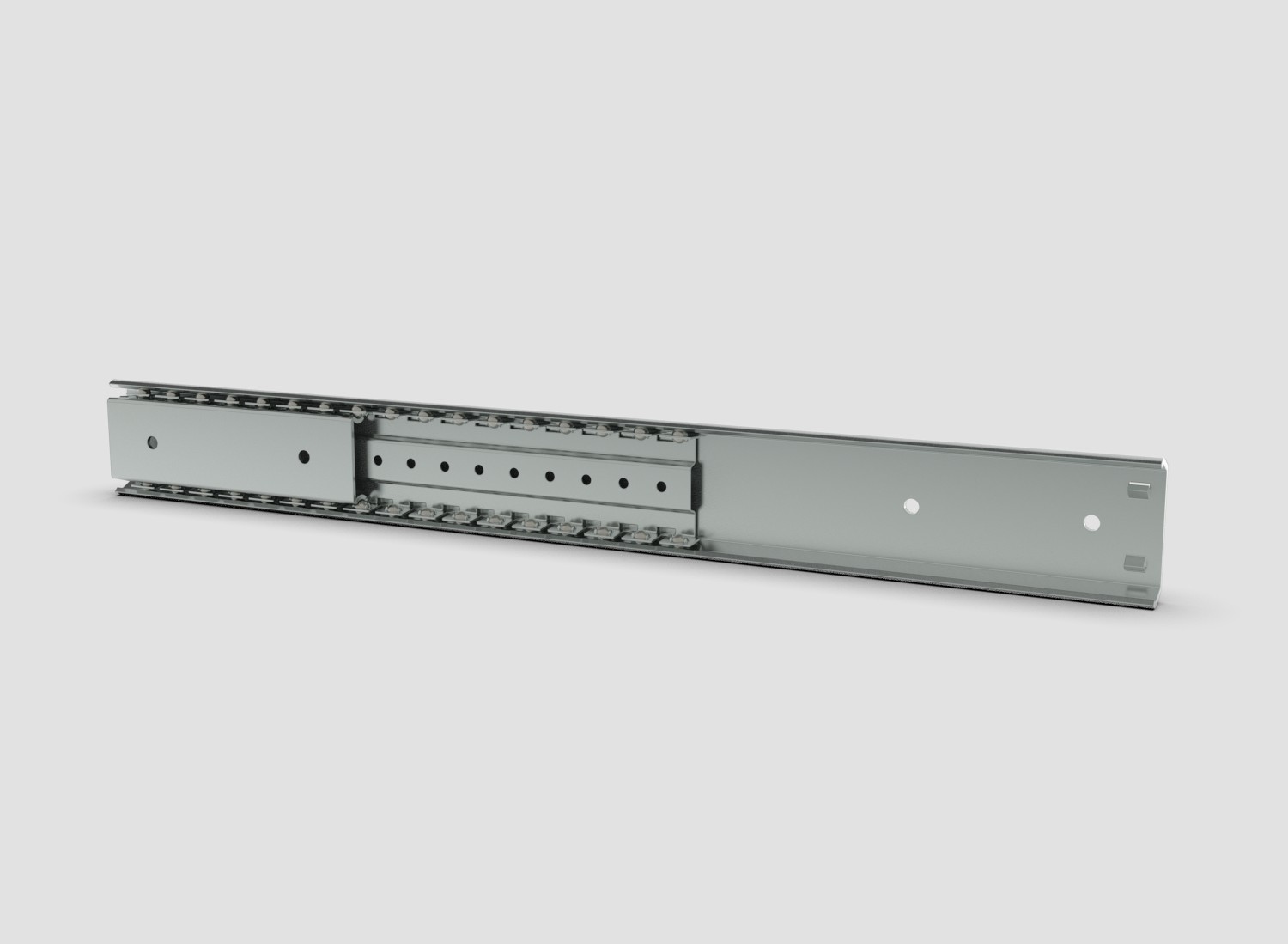

311LM
Linear motion solution with 1-way travel.

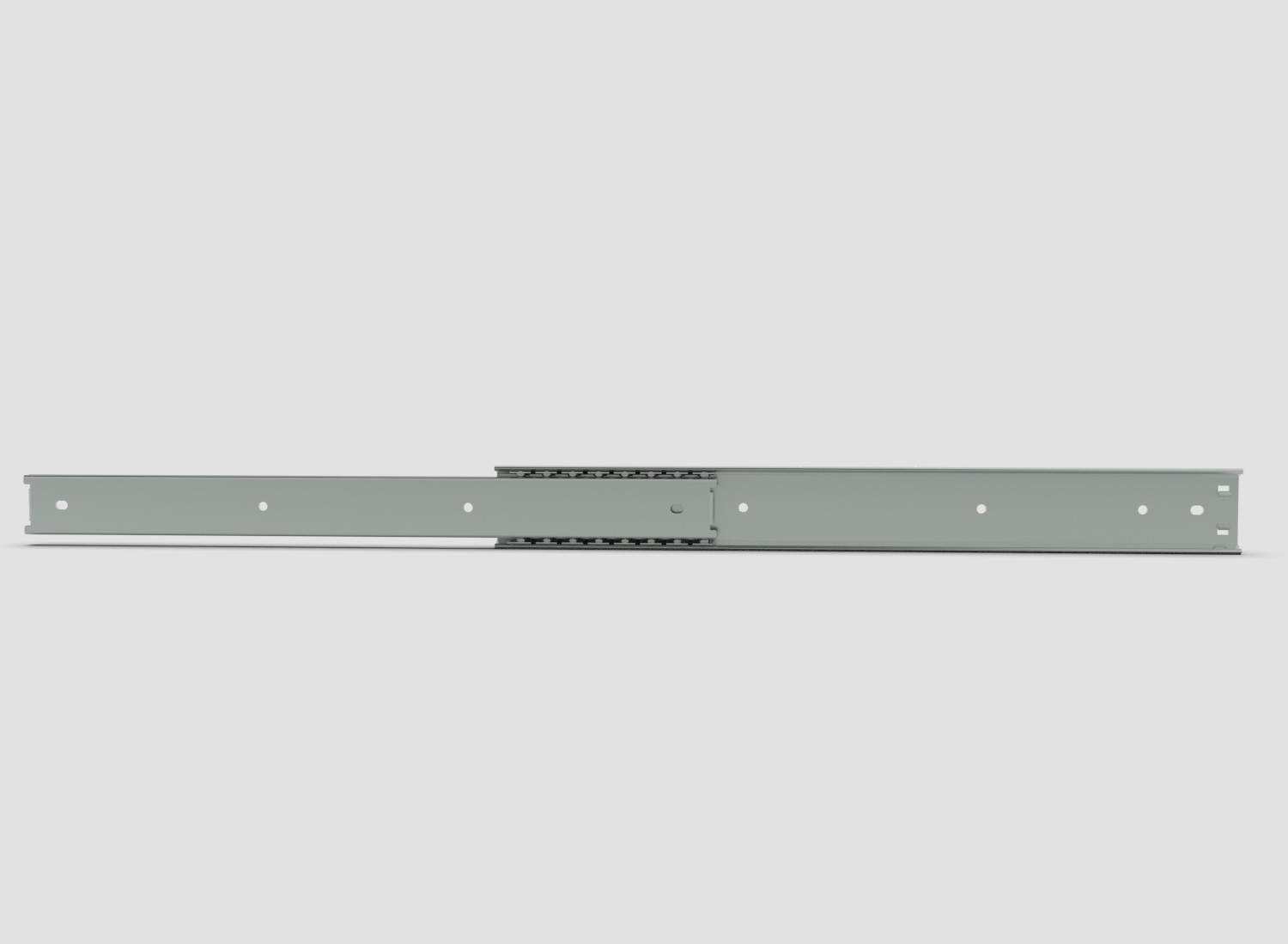

311TW
Linear motion solution with 2-way travel.
