Carbon Steel Telescopic Slides

110 Series Medium-Duty Steel Slides

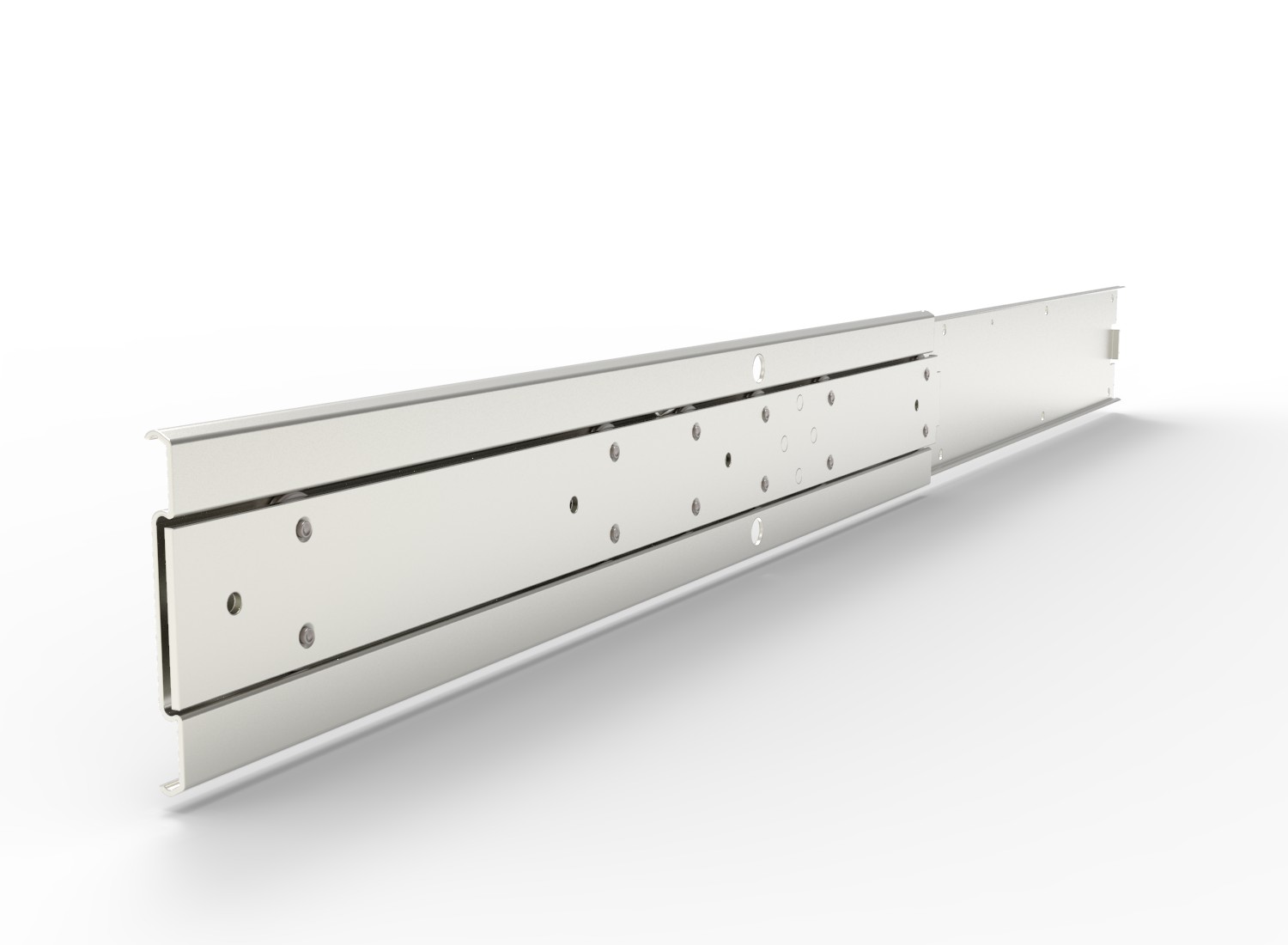

The 110QD-1 series steel slides are 3.25″ x .38″ wide and manufactured in carbon steel with standard zinc plating. The 110QD-1 is a 3 section slide with a load rating of up to 125 lbs.


For Product Support, please contact your Local Representative 714-665-4400 or email

  • Tech Specs
  • Custom Features
  • Downloads
  • Material: Steel
  • Load Rating: 100 to 125 lbs
  • Lengths: 12″ to 24″
  • Travel: 15″ to 27″
  • Lock open
  • Quick disconnect
  • Clear zinc finish
  • 110 Bracketry Available: 204161 & 207104
  • Any length
  • Any travel
  • Custom hole patterns and sizes
  • Custom finishes

110QD-1 & 110QD-2

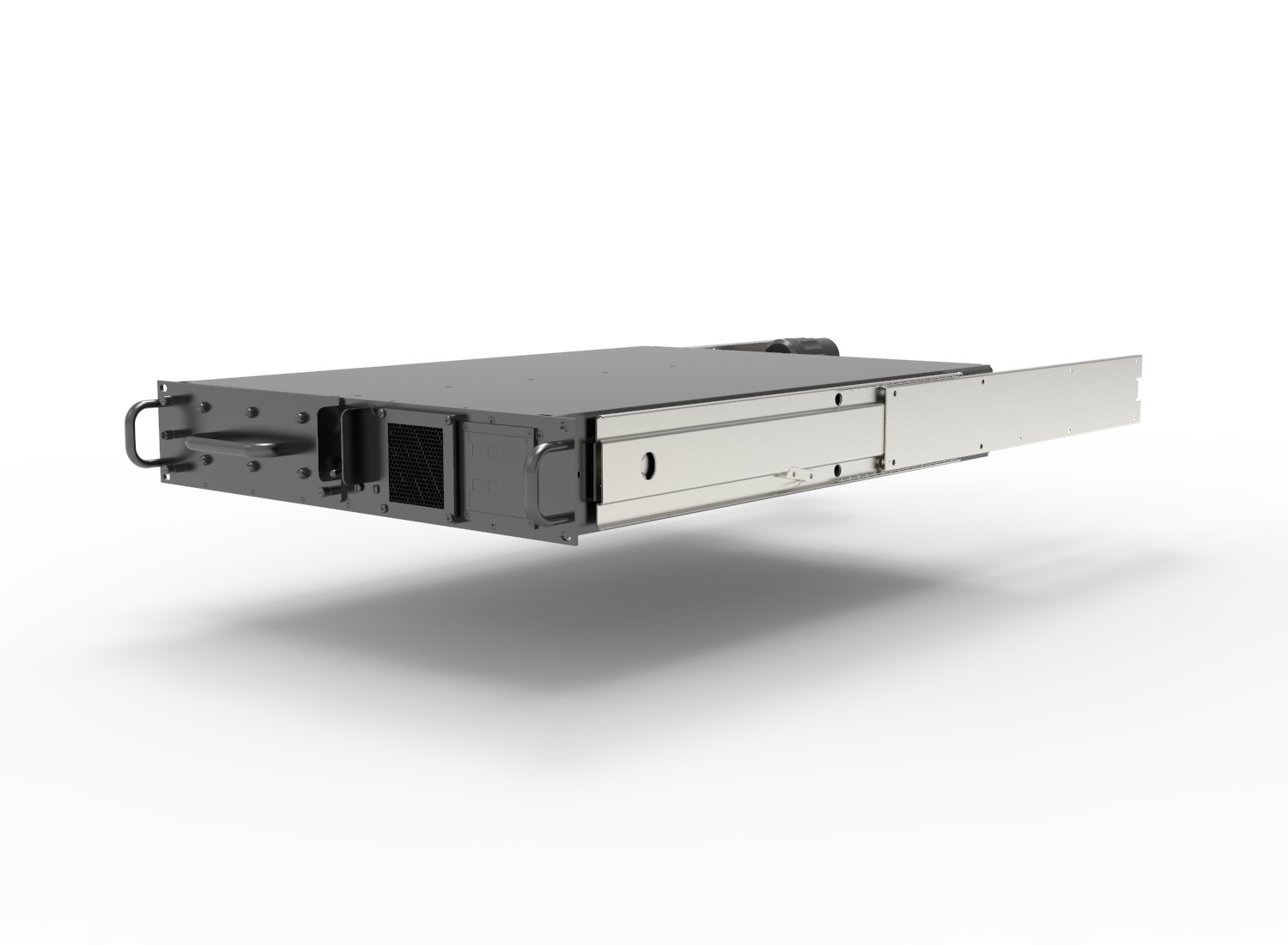

Chassis member includes a quick-disconnect feature for effortless installation and replacement.


110QDP-1 & 110QDP-2

In addition to the quick-disconnect, the channel features a pivot that can be modified to your requirement for tailored functionality.
